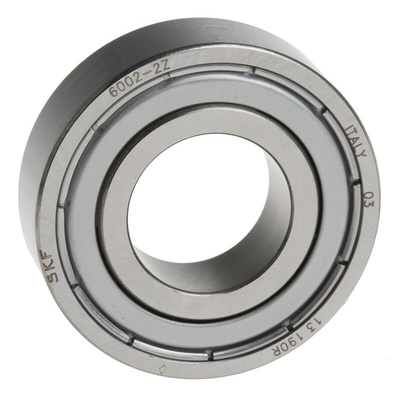

SKF 6002-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 15mm I.D, 32mm O.D, Шарикоподшипник

SKF Deep-groove Ball Bearing, Plain Race Type, 15 mm ID - 6002-2Z

This deep-groove ball bearing from SKF is shielded for a longer lifespan and reduced maintenance needs. Metal shields on the outer race prevent dirt from entering the unit and protect its lubrication, so re-greasing isn't needed. The shields also reduce wear and deterioration of the bearing by keeping its grease clean. You can use this component in high-speed applications and with radial or axial loads in both directions.

• Parallel bore type
• Shielded end type
• Dynamic load rating of 5.85 kN
• Static load rating of 2.85 kN
• Inside diameter of 15 mm
• Outside diameter of 32 mm
• Steel material with steel cage, race and balls
• Single row
• Plain race type
• Race width of 9 mm

Application Information

• Printing industry
• Pulp and paper manufacturing
• Food and beverage industry
• Minerals processing

Where would you use a shielded ball bearing?

Shielded bearings are mainly used in applications where the inner ring rotates but the outer ring stays stationary. If the outer ring rotates there's a risk that the grease will leak from the bearing at high speeds.

What are the most important operating parameters to consider when choosing a bearing?

The most important working conditions to consider are the load weight and speed you require, plus the temperature and cleanliness of the application.
