SKF 6010 Single Row Deep Groove Ball Bearing- Open Type 50mm I.D, 80mm O.D, Шарикоподшипник

Deep Groove Metric Ball Bearings - Open

This range of ball bearings from SKF are deep groove metric ball bearings with an open end. They are extremely versatile for a wide range of applications.
SKF single row, deep groove ball bearings are available with an inner diameter from 3mm to 95mm, so you will be sure to find a ball bearing for your application.

More Information:

Why Choose an Open Ended Ball Bearing?
Open bearings have an open side where the balls are visible. This means they do not have a seal or shield. Open bearings are ideal for environments where they won’t come into contact with dirt as this could disrupt the bearing. Open ball bearings instead allow the lubricant inside to travel freely around the bearing for smooth running.

Why Choose a Single Row Deep Groove Ball Bearing?
This type of ball bearing it often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required.
“Deep Groove” refers to the race (the groove where the balls rest). There is therefore a larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.

Why choose a steel ball bearing?
Steel is the perfect material for ball bearings as it provides strength and reliability whilst being corrosion-resistant. Steel ball bearings are suitable for installing as they require very little maintenance and are designed to last.

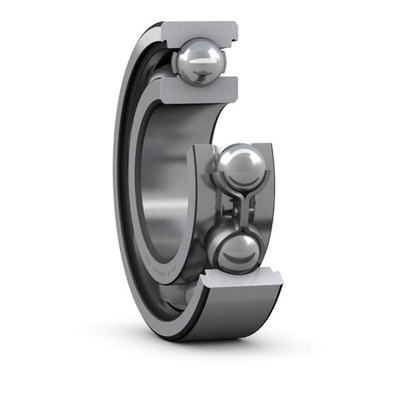

SKF Ball Bearing, Deep-Groove Bearing Type, Steel Cage, 50mm ID, 80mm OD - 6010

Need a ball bearing that supports a high radial load and a lower axial load in both directions, while rotating at high speed? This single-row ball bearing from SKF is a versatile option. As a deep-groove type, it operates with a minimum of vibration and noise, running at a low operating temperature that extends the life of the bearing. The steel cage is resistant to corrosion and heat, making this a suitable option for tough industrial environments.

Features & Benefits

• Parallel bore means you can fit it straight on to a shaft without the need for a bearing sleeve
• Precision-engineered plain race for smooth running
• Dynamic load rating of 22.9 kN means it can handle heavy loads

Applications

• Automation controls
• Pumps
• Motors

Where should I use an open-end ball bearing?

In clean environments where dust and dirt contaminating the inside of the bearing isn't a concern, an open-end ball bearing is a suitable choice. The design allows for easy relubrication and lets the grease travel freely. A sealed or shielded ball bearing is a better option for use in dirty environments.
