SKF 624-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 4mm I.D, 13mm O.D, Шарикоподшипник

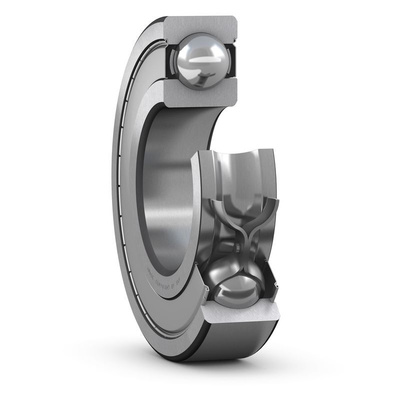

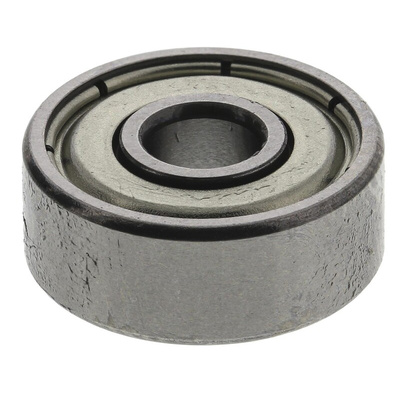

SKF Parallel Single-Row Ball Bearing, 4mm ID, 13mm OD - 624-2Z

This deep-groove ball bearing from SKF is shielded on both sides for safe use in harsh environments. The closed ends let you install it easily in a viable engine shaft for efficient rotation. You can use it to support both radial and axial loads, so it's a versatile option. The single row arrangement is a compact system that houses a large number of rolling elements for speeds up to 53,000r/min (rotations per minute). This means the device operates quietly and friction is minimal.

• Sealed ends mean the unit stays lubricated and needs little maintenance
• Dynamic load rating of 940N protects against moderate to heavy vibrations
• Robust steel cage keeps balls locked in for a secure fit
• Plain race ensures smoother contact of rolling elements

Applications

• Manufacturing
• Construction industry
• Packaging assembly
• Aerospace

What are the dimensions of this ball bearing?

This ball bearing has a race width of 5mm and an inside diameter of 4mm. The outside diameter is 13mm to fit into narrow shafts, so it's compatible with smaller applications. Its static load rating of 290N also means it's highly efficient in compact systems.
