SKF 6203 Single Row Deep Groove Ball Bearing- Open Type 17mm I.D, 40mm O.D, Шарикоподшипник

SKF Deep-Groove Ball Bearing, 17mm ID, 40mm OD - 6203

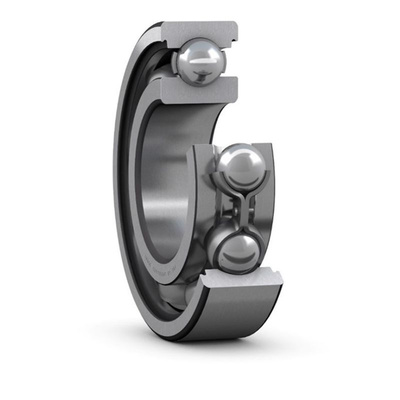

Reduce friction and ensure your machinery can support heavy loads with this SKF deep-groove ball bearing. It has a series of balls held in a smooth raceway between two rings. These rotate in response to the movement of your machine. The unit's made of steel, so is corrosion-resistant and delivers long-lasting operation in demanding conditions. As a single-row ball bearing, it tolerates high speeds and has good capacity for carrying radial loads, so you can fit it to a rotating shaft on an engine.

• Static load rating of 4.75kN (kilonewtons) and dynamic load rating of 9.95kN for reliable performance
• Open-end design for easy lubrication of the workings

Applications

• Power generators
• Farming equipment
• Industrial transmissions
• Water pumps

What speeds can this ball bearing rotate at?

This ball bearing has a reference speed of 38,000r/min (rotations per minute) and a limiting speed of 24,000r/min, so it's a good choice for high-velocity applications.

What are the dimensions of this ball bearing?

This is a compact ball bearing with a 40mm outside diameter, a 17mm inner diameter and a 12mm race width.

Datasheet

SKF Bearing Designations

Catalogue - Rolling bearings

Specification Sheet - 6203
