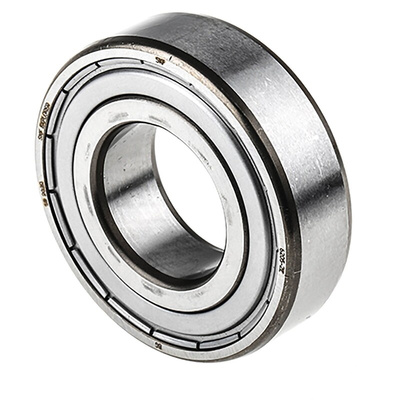

SKF 6205-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 25mm I.D, 52mm O.D, Шарикоподшипник

SKF Deep-groove Ball Bearing, Plain Race Type, 25 mm ID - 6205-2Z

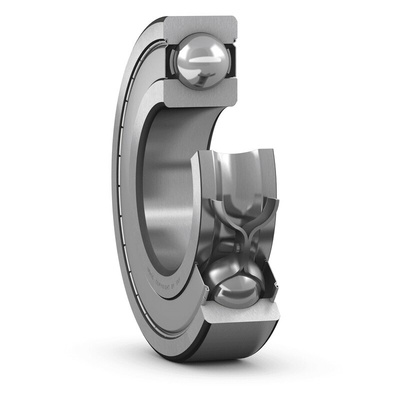

This SKF deep-groove ball bearing has an optimised internal geometry to reduce its friction, wear and heat generation. This allows it to accommodate heavier loads. The unit is protected by dust shields on either side, which prevent dirt from hampering its operation. Its shields also extend the bearing's lubricant life, so it needs very little maintenance. The component can handle high shaft rotational speeds, thanks to its cool operating temperature and low levels of vibration.

• Parallel bore type
• Shielded end type
• Ball and cage made of steel
• Dynamic load rating of 14.8 kN
• Static load rating of 7.8 kN
• Inside diameter of 25 mm
• Outside diameter of 52 mm
• Single row
• Plain race type
• Race width of 15 mm

Application Information

• Medical and pharmaceutical industries
• Paper and pulp manufacturing
• Printing
• Food and beverage industry

How do I stop my bearings from getting dirty while I'm mounting them?

If you need to mount your bearing in an unclean area it's important to prevent dirt, dust or moisture from reaching it. You can protect the unit by covering or wrapping it with plastic or foil. Be sure to also clean the machine components that you're mounting the bearing onto.
