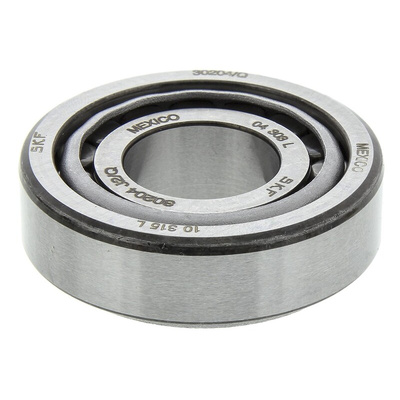

SKF 30204 J2/Q 20mm I.D Taper Roller Bearing, 47mm O.D, Роликовый подшипник

SKF Roller Bearing, Tapered Bore Bearing Type, 20mm ID, 47mm OD - 30204 J2/Q

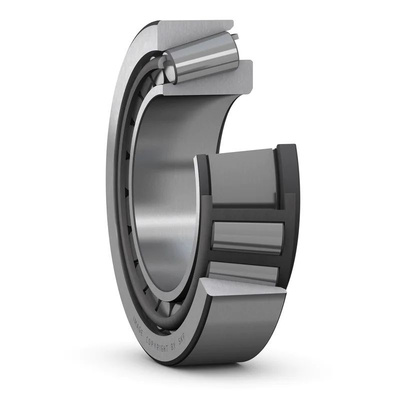

Use this roller bearing from SKF to help your equipment move without friction or noise. The cylindrical rolling parts are held securely between two raceways and are precisely separated to allow free movement without rubbing. A durable steel cage offers corrosion resistance, so you can be sure of a long service life. This material is also strong enough to handle a dynamic load rating of 32kN and a static load rating of 28kN. As a tapered bearing type, this unit can support simultaneous thrust and radial loads.

Features & Benefits

• Reference speed of 12,000rpm and limiting speed of 15,000rpm to support fast-moving applications
• 15.25mm race width for wide compatibility
• 3kN fatigue load limit for reliability in demanding applications
• Separable and interchangeable components for easy cleaning, maintenance and replacement

Applications

• Centrifugal pumps
• Automotive industry
• Domestic appliances

What size is this roller bearing?

This roller bearing has a compact size with a 20mm inside diameter and a 47mm outside diameter, meaning it won’t add bulk to your setup and can be installed in tight places.

Dimension drawing data sheet

Datasheet - 30204 J2/Q
