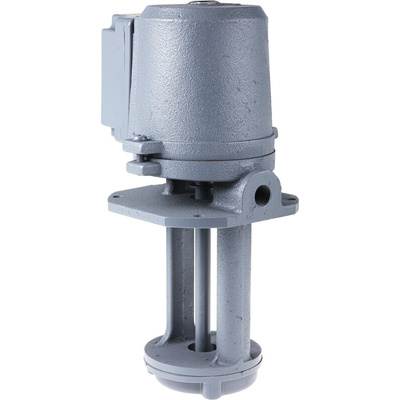

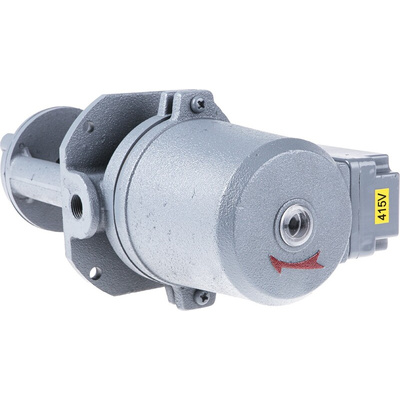

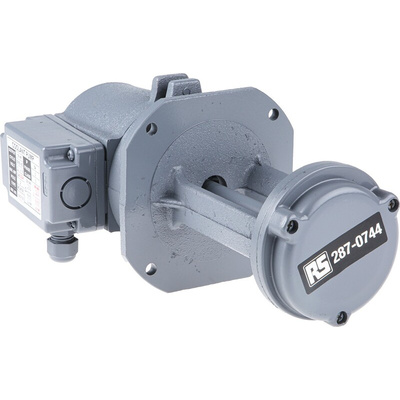

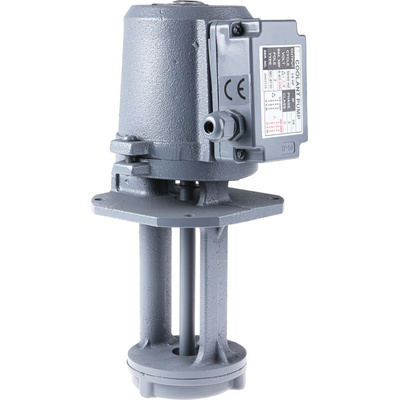

RS PRO 3/8in 415 V ac Suds Pump

RS PRO 3/8 in 415 V AC Suds Pump

Grinding, cutting and milling applications create heat, and sometimes industrial machine tools need cooling down. This high-quality coolant pump from RS PRO applies lubricants to tools to prevent them from overheating.

The device is driven by a 1/8 horsepower (HP) motor and can pump 400 gallons per hour at a 6-foot lift. It's constructed from tough cast iron and mounted through a flange between the motor and the submersible base. The mounting flange has 4 bolt holes of 7 mm diameter. The coolant pipe outlet is a tapped 3/8 (British Standard Pipe (BSP) thread. The pump voltage is rated at 415 V AC. It sits on the 125 mm square flange with the pump extending 140 mm above the base and 136 mm below it. The flange is 6.3 mm thick.

You'll commonly find this kind of pump in industrial manufacturing environments.

Features and Benefits

• 415 V AC suds pump
• Cast-iron construction
• 1/8 horsepower motor
• Pumps 400 gallons per hour at 6 ft lift
• Coolant pipe outlet is tapped 3/8 in British Standard Pipe (BSP) thread
• 6.3 mm flange mount with 4 x 7 mm bolt holes
• 125 mm square flange
• Height above base of 140 mm
• Submersible base extends 136 mm below flange
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
