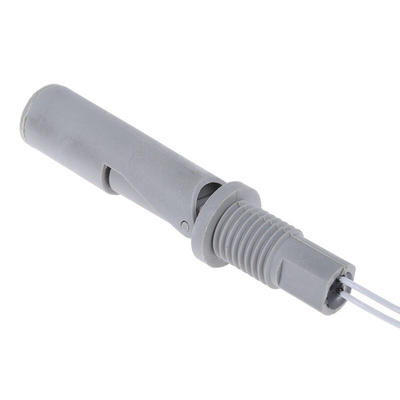

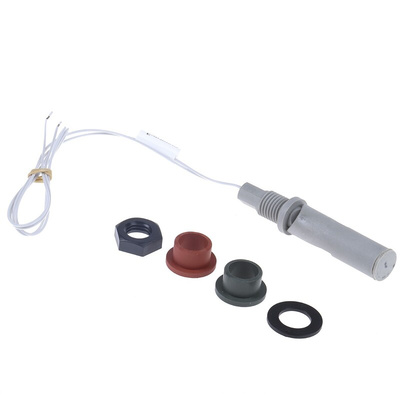

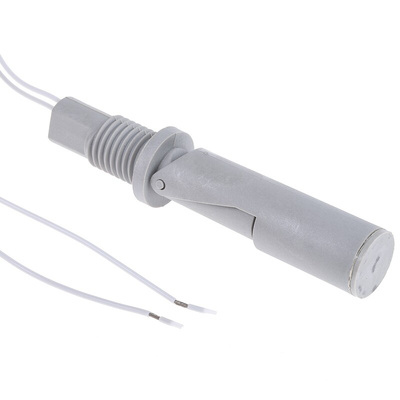

RSF76Y050TV, Sensata / Cynergy3 RSF70 Series Horizontal Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC, 240V ac Max,

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Sensata Cynergy3 Horizontal External Float Switch, NO/NC, 500 mm - RSF70 Series - RSF76Y050TV

This Sensata Cynergy3 float switch is a simple and reliable way to monitor liquid levels in your system. It's designed to fit through a tank wall from the outside, so it's a good choice for less accessible containers. The switch is simple to install – just insert the switch into a 23 mm diameter hole in your tank, then use the compression seal and backnut to secure it in place. To make it a versatile choice, this switch is suitable for use with most organic and inorganic chemicals and oils. You'll commonly find it used in vending machines, commercial washing machines and evaporator units.

Features and Benefits

• Polyphenylene sulfide body and silicone and Viton gasket for use in challenging chemical applications
• Broad operating temperature range of -10°C to +120°C for use in demanding conditions
• Simple rotation of 180° to set the switch action to normally open (NO) or normally closed (NC) operation

How does this float switch work?

This switch combines a reed switch with a pivoted magnet on a float. The magnet causes the reed switch to close or open at a specific fluid level.

RSF70 Series External Switch Datasheet

Brochure - Level Sensors and Switches

Installation Guide
