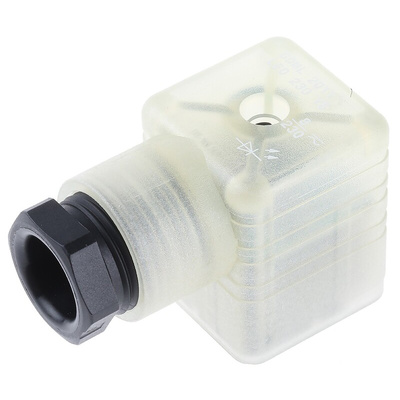

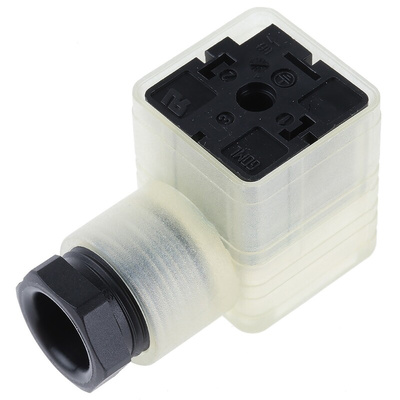

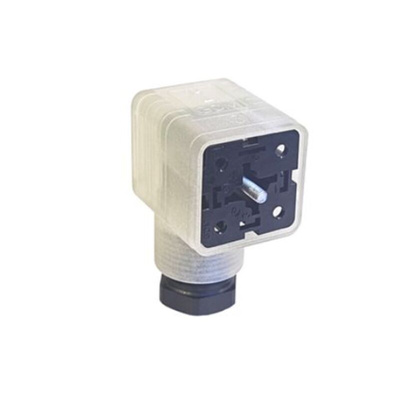

933739212 GDML 2011 LED 230 YE black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 8A Current Rating, PG11 Cable Gland - GDML Series - 933739212 GDML 2011 LED 230 YE black

Looking for a durable adapter to link solenoid valves to your industrial equipment? Choose this connector from Belden's Hirschmann range. Thermoplastic housing makes this field-attachable component resistant to heat and impact, so you can use it in harsh environments. Thanks to its angled design, it fits easily in confined setups. An integrated bipolar LED function indicator makes it easy to monitor and troubleshoot, cutting downtime and boosting productivity.

Features & Benefits

• Rated impulse withstand voltage of 4kV to handle sudden power spikes without suffering damage
• Central screw attachment for a secure connection
• Low contact resistance of less than 10MΩ for seamless signal transmission

Applications

• Agricultural equipment
• Industrial cooling systems
• Oil and gas plants

What cable sizes can I use with this connector?

This unit is compatible with cables with diameters from 6 to 9mm.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

GDM Series Cable Sockets with Insert

PCN-LTPS-2018-06-28_GDM Series EOL_EN.pdf

Datasheet - 933739212 GDML 2011 LED 230 YE black
