M/58102/10, IMI Norgren Vacuum Pump, >7mm nozzle , -0.87bar 80L/min, M/58102 series

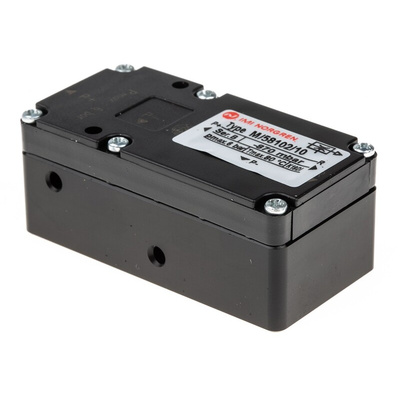

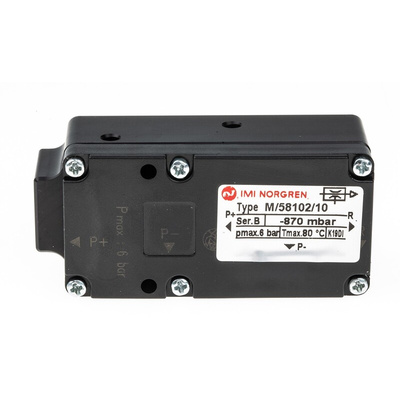

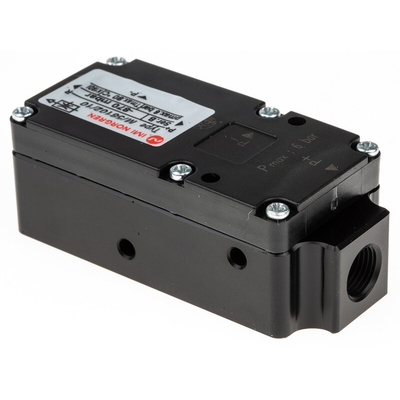

IMI Norgren Low-Sound Vacuum Pump, 0.87 to 6 Bar, 80L/min Suction Flow - M/58102 Series - M/58102/10

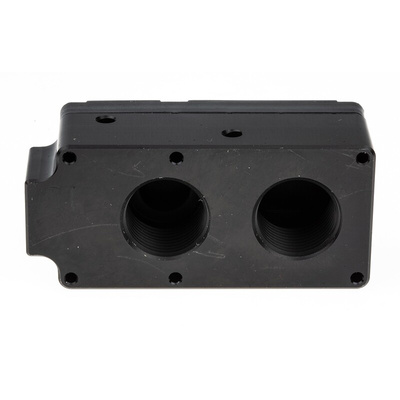

Move compressed air around your pneumatic system with this vacuum pump from IMI Norgren. It features a non-return valve that maintains a single-direction flow for smooth operation. Its maximum suction flow of 80L/min (litres per minute) means it evacuates large volumes of air, reducing loss and ensuring efficient performance. For added safety, the unit comes with a silencer that reduces noise so team members can still hear alerts in factory settings. As this pump's sub base is made from aluminium, it's corrosion-resistant and delivers a long service life in harsh environments.

Features & Benefits

• Lightweight at 0.089kg to reduce strain on equipment
• NBR (nitrile butadeine rubber) seals are resistant to chemicals and hardwearing
• Compact 25 (H) x 30mm (W) dimensions mean it fits easily in cramped spaces
• Wide vacuum pressure range between 0.87 and 6 bar for versatile use
• Broad operating temperature range between -20°C and +80°C for use in demanding environments

Applications

• Packaging industry
• Power generation plants
• Printing press

How quickly does this device pump air?

This unit has an evacuation time of 0.07 seconds per litre, which makes it suitable for applications where a fast response is needed.

Datasheet
