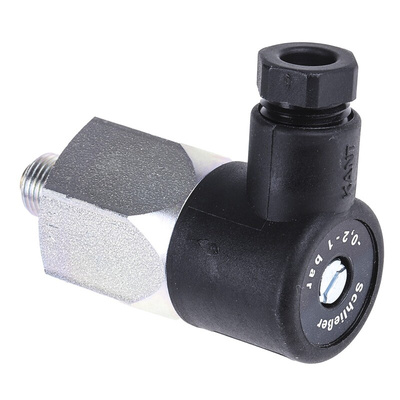

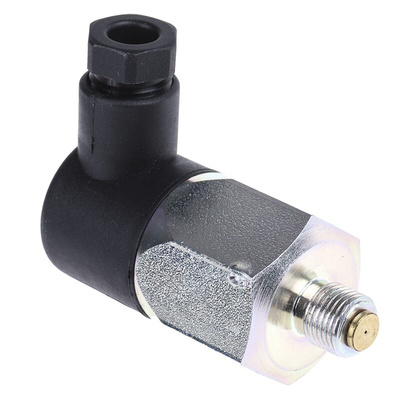

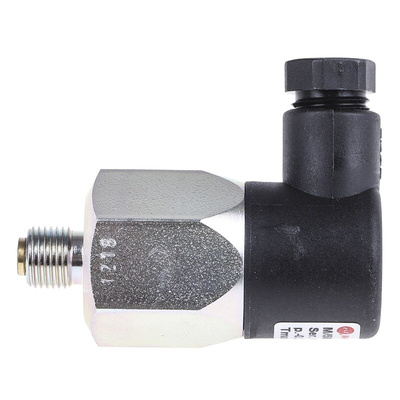

M/58024/VB, Norgren Vacuum Switch, G 1/8 -1bar to -0.2 bar

IMI Norgren Vacuum Switch, NO Configuration, 250V AC/DC Rating - M/58024 Series - M/58024/VB

Need to maintain precise pressure in your pneumatic system? Turn to this electrical vacuum switch from IMI Norgren. It has a vacuum range between -0.2 and -1 bar, making it suitable for use in vacuums requiring pinpoint suction pressure. The switch's housing material is zinc-plated, making it corrosion-resistant and suitable for use in harsh conditions. A silicon diaphragm protects its sensing elements from fluids for reliable performance and minimal maintenance.

Features & Benefits

• Operating temperature range between -20°C and +80°C for use in challenging conditions
• IP55 rating means it's protected from dirt, dust, oil and other non-corrosive materials likely to be found in industrial environments
• 2A switching current for reduced loss of heat
• Adjusting screw to find your set point easily
• Switching voltage of 250V AC means it can be used in medium-duty to heavy-duty vacuums

Applications

• Medical vacuum pumps
• Suction machines
• Manufacturing industry

What size of thread connection does this vacuum switch use?

This vacuum pump has a standard G1/8 thread, so you can be sure of wide compatibility and a tight connection that won't work loose in the event of vibration.
