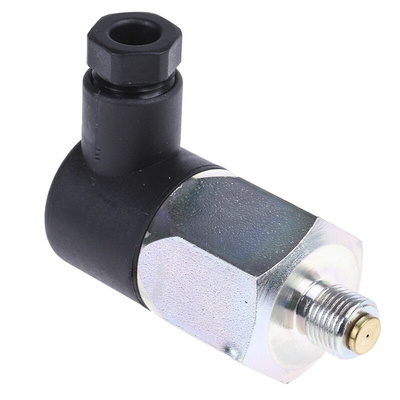

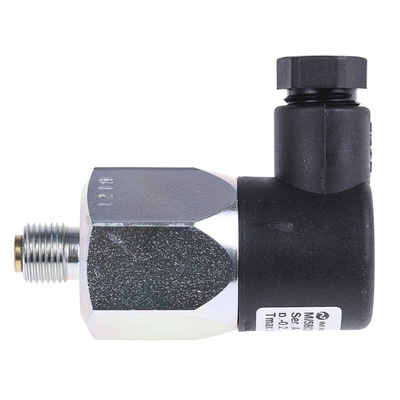

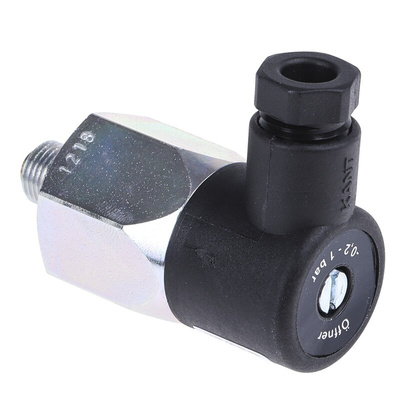

M/58024/VF, IMI Norgren Vacuum Switch, G 1/8 -1bar to -0.2 bar

IMI Norgren Vacuum Switch, NC Configuration, IP55 Rating - M/58024 Series - M/58024/VF

For stability in your pneumatic system, choose this vacuum switch from IMI Norgren. It regulates the flow of vacuum from one space to another to ensure a balanced setup. The switch has a silicone diaphragm that senses the pressure difference between the two areas to trigger the opening or closing of the device's contacts. Thanks to a zinc-plated metal body, this unit is resistant to impact and corrosion, making it ideal for use in harsh environments.

Features & Benefits

• Light weight of 90g for easy handling and minimal system strain
• Broad operating range of -20°C to +80°C for use in demanding settings
• Simple G1/8 threaded connection for tool-free installation
• Voltage rating of 250V AC/DC for use in low-voltage applications

Applications

• Safety interlocks
• Semiconductor manufacturing equipment
• Oil and gas plants

Is this vacuum switch dust-resistant?

Yes, its IP55 rating means it can withstand dust and low-pressure water jets, so you can rely on it to perform in contaminated conditions.

Can I use moist or humid air when using this vacuum switch?

No, the air supply must be dry to prevent ice formation at temperatures below +2°C that could damage your equipment.

M/58024/VB M/58024/VF Electric Vacuum Switches Data Sheet
