RS PRO Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

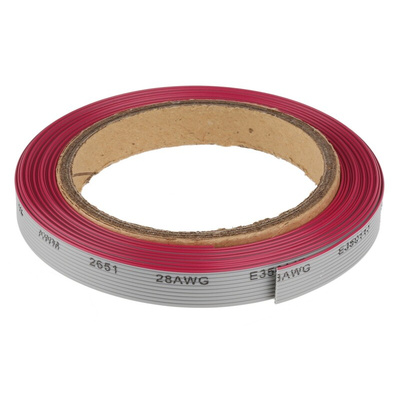

RS PRO 10 Way Unscreened Flat Ribbon Cable, 12.7 mm Width, 5 m

Simplify your job when connecting devices that transmit data with this flat ribbon cable from RS PRO. Designed for mass termination when working with information-carrying devices like computers, audio or digital equipment, it's 5 m-long, 10-way and has a pitch of 1.27 mm.

The unscreened cable has a capacitance of 49.2 pF/m and characteristic impedance of 105, suitable for carrying data. A red marker on one edge indicates the first conductor means so you can divide it by tearing between conductors. As it's temperature-resistant, you can use it down to -20˚C and up to +105˚C. There are seven core strands measuring 0.15 mm² each (AWG 28).

The cable is RoHS compliant for minimal hazardous substances. Safe for general-purpose wiring of electronic and electrical equipment, it meets the UL 1007 standard. The ribbon also meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, so it won't damage equipment through electrostatic discharge.

Features and Benefits

• 10-way flat ribbon cable
• Length of 5 m
• Used for mass termination in computer, audio and digital equipment
• Unscreened
• Width of 12.7 mm
• Pitch of 1.27 mm
• Voltage rating of 300 V
• Seven-stranded conductors have a cross-sectional area of 0.15 mm² (AWG28)
• Characteristic impedance of 105 Ω is suitable for data transmission
• Capacitance of 49.2 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting

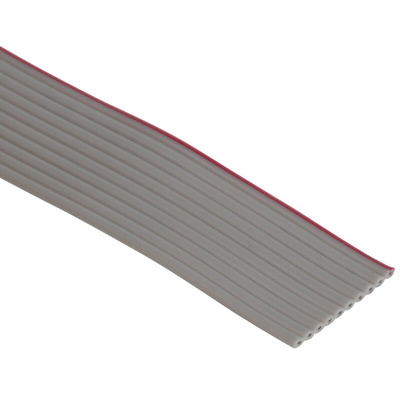

• Grey sheath with red marker to indicate first conductor
• Conforms to standards UL 1007 (general purpose internal wiring), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; CSA
