RS PRO Flat Ribbon Cable, 16-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

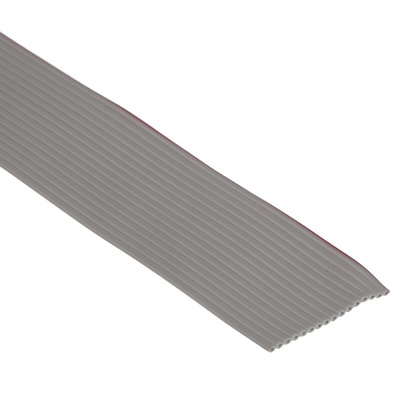

RS PRO 16 Way Unscreened Flat Ribbon Cable, 20.3 mm Width, 5 m

Joining data-transmitting devices? Choose this 16-way unscreened flat ribbon cable from the trusted RS PRO range to mass terminate easily. It's commonly used when connecting computers, audio or digital equipment, measures 20.3 mm wide and comes in a 5 m roll.

It's simple to use, as you can tear the ribbon between conductors to divide it, using the red marker that indicates the first conductor as a guide. Inside there are seven 0.13 mm² (AWG 28) conductors. It has a voltage rating of 300 V. In addition it's temperature-resistant, so will operate from -20˚C to +105˚C.

RoHS compliant, it contains minimal hazardous substances. It conforms to the UL 2651 standard so is safe to use with all insulation displacement connectors (IDC). It also meets electrostatic discharge ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 requirements, so it won't damage equipment.

Features and Benefits

• 16-way unscreened flat ribbon cable
• Used for mass termination in computer, audio and digital equipment
• Length of 5 m
• Width of 20.3 mm
• Pitch of 1.27 mm
• Seven-stranded conductors with a cross-sectional area of 0.13 mm² (AWG28)
• Voltage rating of 300 V
• Characteristic impedance of 105 Ω is suitable for data transmission
• Capacitance of 49.2 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting
• Grey sheath with red marker to indicate first conductor
• Conforms to standards UL 2651 (ribbon cable for use with IDCs), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; CSA
