RS PRO Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

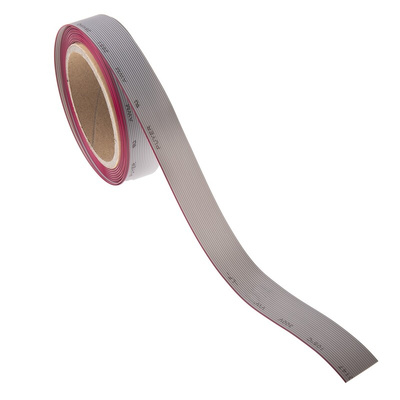

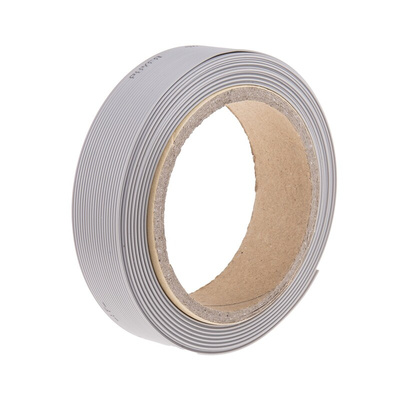

RS PRO 20 Way Unscreened Flat Ribbon Cable, 25.4 mm Width, 5 m

If you need an efficient solution to mass termination when connecting devices that transmit data, consider this unscreened flat ribbon tape. This RS PRO 20-way cable is usually found when working with computers and audio and digital equipment.

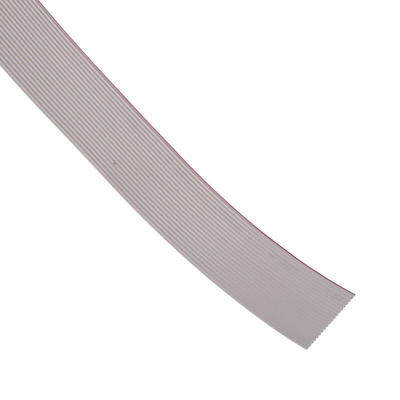

The ribbon has a convenient red marker to show the first conductor, so you can separate the tape to suit your needs by tearing between conductors. It's unscreened, 25.4 mm wide and five meters long. Each 0.13 mm² conductor comprises seven strands that measure AWG 28. Temperature-wise, the operating range is -20˚C to +105˚C. This cable has a voltage rating of 300 V.

You can use this cable with all insulation displacement connectors (IDC) because it meets UL 2651 standard. It also meets electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 keeping equipment safe. RoHS compliant, it contains minimal hazardous substances.

Features and Benefits

• 20-way unscreened flat ribbon cable
• Used for mass termination in computer, audio and digital equipment
• Length of 5 m
• Width of 25.4 mm
• Pitch of 1.27 mm
• Seven-stranded conductors with a cross-sectional area of 0.13 mm² (AWG28)
• Voltage rating of 300 V
• Characteristic impedance of 105 Ω is suitable for data transmission
• Capacitance of 49.2 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting
• Grey sheath with red marker to indicate first conductor
• Conforms to standards UL 2651 (ribbon cable for use with IDCs), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; CSA
