RS PRO Flat Ribbon Cable, 26-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

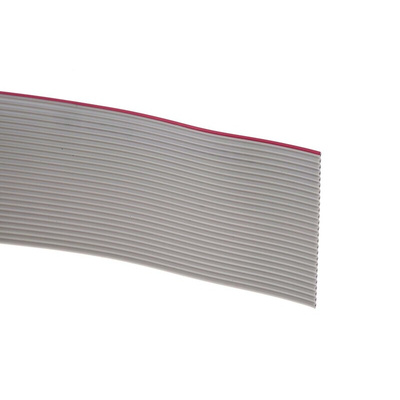

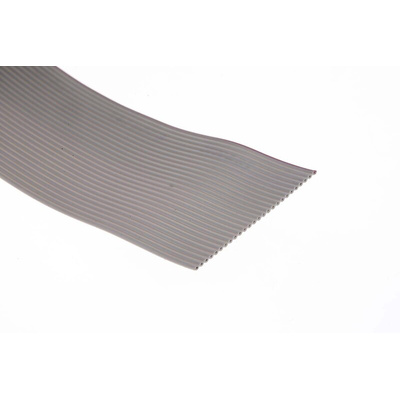

RS PRO 26 Way Unscreened Flat Ribbon Cable, 33 mm Width, 5 m

Providing a simple solution to mass termination, this 26-way unscreened flat ribbon cable can be used with data transmitting equipment. It measures 33 mm wide and comes in a 5-metre roll. This type of tape is commonly used when connecting computers, audio or digital equipment.

To use it, just tear the ribbon between conductors to divide the tape any number of ways using the red marker indicating the first one as a guide. The seven conductors measure 0.13 mm² (AWG 28). Temperature-resistant, they'll operate from -20˚C to +105˚C. Its voltage rating is 300 V. As part of the RS PRO range, it's been tested by leading engineers.

RoHS compliant, it contains minimal hazardous substances. It conforms to the UL 2651 safety standard so is suitable for use with all insulation displacement connectors (IDC). It also meets electrostatic discharge ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 norms so it won't damage equipment.

Features and Benefits

• 26-way unscreened flat ribbon cable
• Used for mass termination in computer, audio and digital equipment
• Length of 5 m
• Width of 33 mm
• Pitch of 1.27 mm
• Seven-stranded conductors with a cross-sectional area of 0.13 mm² (AWG28)
• Voltage rating of 300 V
• Characteristic impedance of 105 Ω is suitable for data transmission
• Capacitance of 49.2 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting
• Grey sheath with red marker to indicate first conductor
• Conforms to standards UL 2651 (ribbon cable for use with IDCs), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; CSA
