RS PRO Flat Ribbon Cable, 34-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

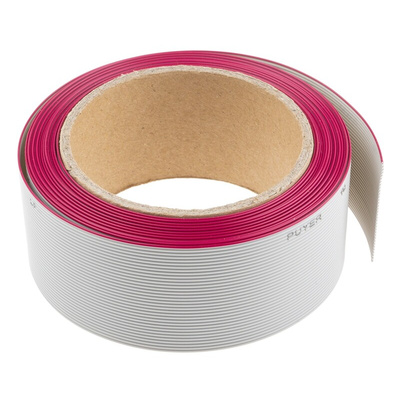

RS PRO 34 Way Unscreened Flat Ribbon Cable, 43.2 mm Width, 5 m

If you're needing to connect computers, audio or digital equipment, consider this 34-way flat ribbon cable from the RS PRO range. It enables you to mass terminate easily when joining devices that transmit data.

The cable is unscreened and is 43.2 mm-wide in a length of five metres. Simply tear the ribbon between conductors to split it, using the red marker that indicates the first conductor as a guide. Internally, each 0.13 mm² (AWG 28) conductor comprises seven strands. Temperature resistant, they will function from -20˚C to +105˚C. There's a voltage rating of 300 V.

This cable is suitable for use with all insulation displacement connectors (IDC) as it conforms to the UL 2651 standard. It also meets electrostatic discharge ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 norms so it won't damage equipment. RoHS compliant, it contains minimal hazardous substances.

Features and Benefits

• 34-way unscreened flat ribbon cable
• Used for mass termination in computer, audio and digital equipment
• Length of 5 m
• Width of 43.2 mm
• Pitch of 1.27 mm
• Seven-stranded conductors with a cross-sectional area of 0.13 mm² (AWG28)
• Voltage rating of 300 V
• Characteristic impedance of 105 Ω is suitable for data transmission
• Capacitance of 49.2 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting

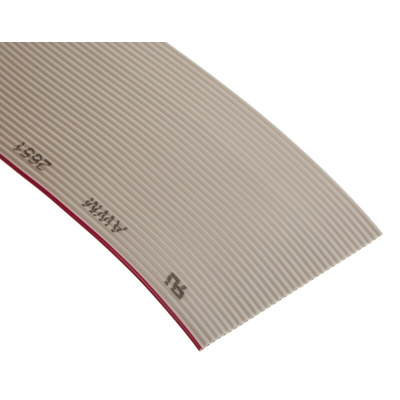

• Grey sheath with red marker to indicate first conductor
• Conforms to standards UL 2651 (ribbon cable for use with IDCs), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; CSA
