3025176, Phoenix Contact SK Series Shield Connection Clamp for Use with Busbar

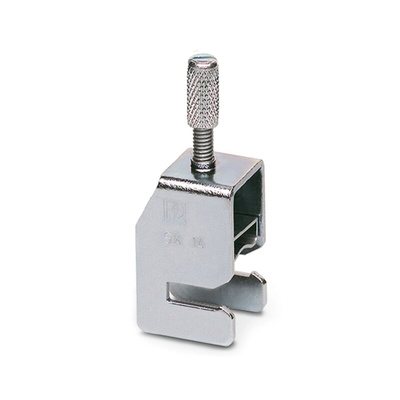

Phoenix Contact Shield Connection Clamp, 3 to 14mm Cable Diameter, Spring-Loaded - SK 14 - 3025176

Put a damper on electromagnetic interference with this shield connection clamp from Phoenix Contact. It includes a grounding foot that safely dissipates stray electric charge, which helps to protect your signals, data cables and power supplies from interference.

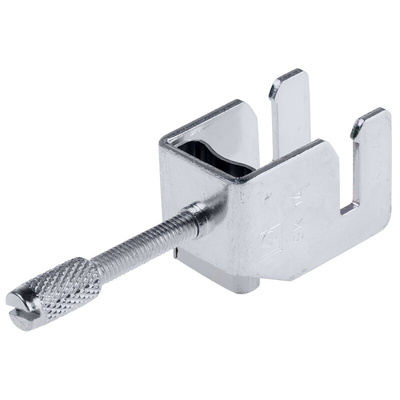

A knurled screw makes it a cinch to hold your cables in place securely. Thanks to the pressure plate, you're assured of maximum conductor contact, giving you the benefit of optimum shield attenuation. Optional busbar or direct mounting gives you flexibility in your setup. The unit's steel construction is robust and wear-resistant for compatibility with harsh industrial settings.
A product like this is just what you need to cut down on the risk of equipment malfunctions or system failures in industrial control cabinets. It also gets you a step closer to EMC-compliant wiring.

Features & Benefits

• Handles a wide range of cable diameters between 3 and 14mm for compatibility with single wires and bundles
• Slotted screw head to easily achieve a higher tightening torque using a standard screwdriver
• Light weight of 20.3g puts minimal strain on your control board
• Zero power dissipation ensures no energy is wasted

Datasheet

Line Drawing - 3025176
