1725753, Phoenix Contact MPT 0.5/12-2.54 Series PCB Terminal Block, 12-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw

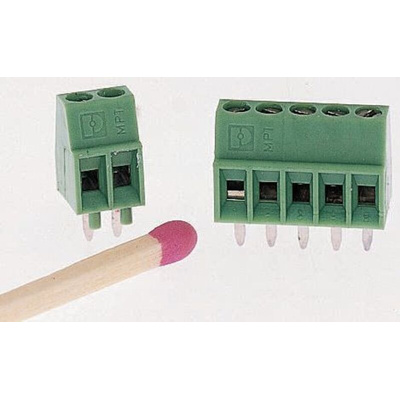

MPT micro-PCB terminals - 2.54 mm pitch

These PCB terminals are specially designed for miniature sub-assemblies and devices with high contact density.
This enables easy and reliable connection of conductors with sections of up to 0.5 mm².

Phoenix Contact PCB Terminal Strip, 2.54 mm Pitch, 12-way - MPT 0,5/12-2,54 - 1725753

To terminate wires and transmit signals to another circuit or system, choose this printed circuit board (PCB) terminal strip from Phoenix Contact. It's especially useful in systems that need frequent inspections, repair and change, such as domestic and semi-automatic machinery. Screw terminals ensure a secure fit without the need for special tools.
You can mount the terminal strip onto your PCB using the wave soldering method. The block has 12 contacts in a single row. Its compact design with a pitch of 2.54 mm makes it suitable for use in miniature sub-assemblies and devices with high contact density. The nylon construction with polyamide insulation offers enhanced safety and durability.
This unit has a fire safety rating of UL (Underwriters Laboratory) 94 V-0, meaning it stops burning within 10 seconds.

• Straight body orientation
• Green colour
• Through-hole mounting type
• Female gender
• Length of 30.94 mm
• Width of 8.5 mm
• Depth of 6.2 mm
• Stripping length of 4.5 mm
• Current rating of 6 A
• Voltage rating of 63 V

MPT 0,5/ 12--2,54
