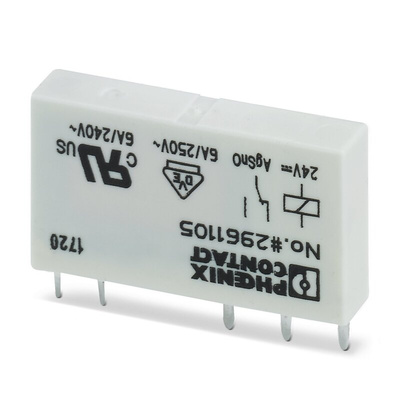

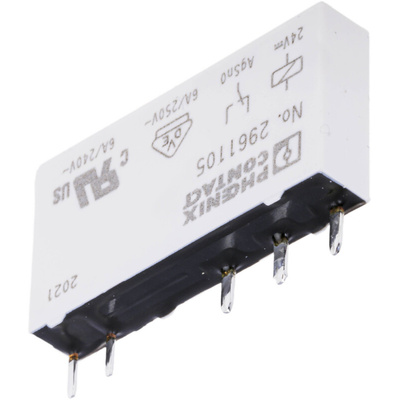

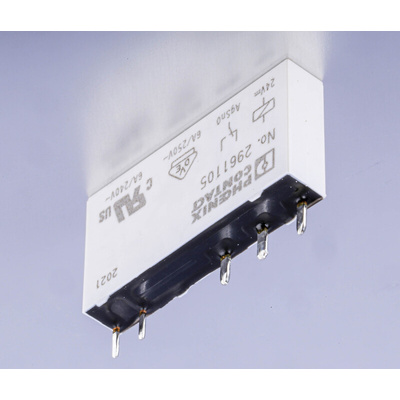

2961105, Phoenix Contact PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPDT, Реле

Phoenix Contact Power Relay, 3390Ω Coil Resistance, PCB Mounting - REL-MR- 24DC/21 - 2961105

Bring your circuits to life at the flick of a switch with this power relay from Phoenix Contact. It's a versatile SPDT device you can use to switch between two circuits, or just to control the on/off function of a single circuit. A maximum switching voltage of 250V AC/DC means it can handle high-powered applications. To take up minimal space in a busy system, it has compact dimensions of 5 (W) x 28 (H) x 15mm (H).
As it mounts directly to a PCB via its five pins, installing this unit is quick and simple. The silver alloy contacts are resistant to corrosion, so they're dependable even in humid settings. As relays like this one are suitable for tasks like controlling motors and lighting circuits, they're often used in industrial automation, telecommunications and manufacturing applications.

Features & Benefits

• Coil voltage of 24V DC means it's widely compatible
• Tips the scales at 5g so won't weigh down your PCB
• Wide operating temperature range between -40°C and +85°C
• Typical response time of 5ms for speedy switching of fast-paced equipment
• Can be mounted in any position to meet the needs of your setup

Note

When using this type of relay is sometimes vented to the atmosphere after the soldering or watering process. In this case the requirement with respect to clearance and creepage distance can change.

Datasheet 2961105

Application Note

Line Drawing - 2961105
