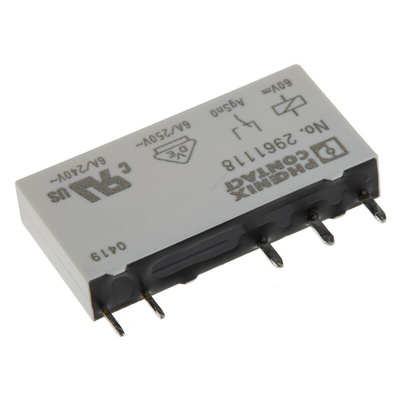

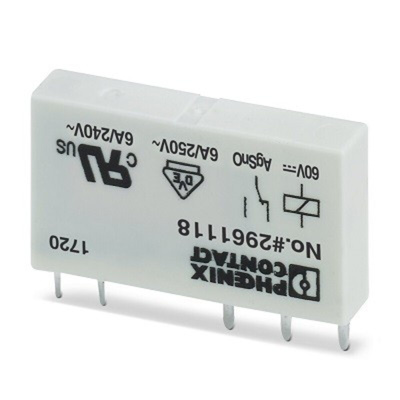

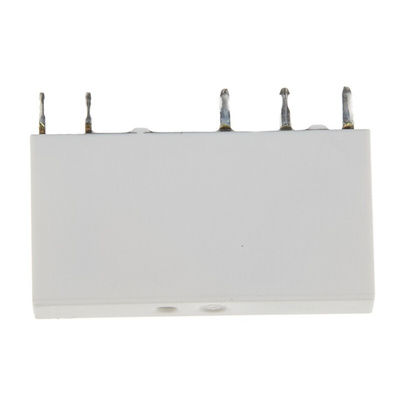

Phoenix Contact Power Relay, 20,500Ω Coil Resistance, Solder Connection - REL-MR- 60DC/21 - 2961118
Need to switch a high-power load and a regular relay won't cut it? Reach for this power relay from Phoenix Contact. It works with an input voltage of 60V DC and switches your circuit on or off when a current flows through its electromagnetic coil. As the coil is isolated from the contacts, this is a safe solution for users and equipment. Thanks to a maximum AC switching power of 1.5kVA, you can rely on this relay to get heavy-duty jobs done.
The highly conductive silver alloy contacts are tough enough to handle the current needed to switch your circuits reliably. They're also resistant to arcing and wear, which is vital for continuous switching. You can use this device in industrial environments such as chemical production facilities and logistics centres. With an operating temperature range between -40°C and +85°C, it's suitable for use in extreme conditions.
Features & Benefits
• Typical response time of 5ms for fast switching
• PCB mounting for straightforward installation
• Small dimensions of 15 (H) x 28 (L) x 5mm (D) to maximise board space
• High resistance of 20,500Ω helps prevent overheating
• SDPT configuration for switching between power sources or swapping inputs
