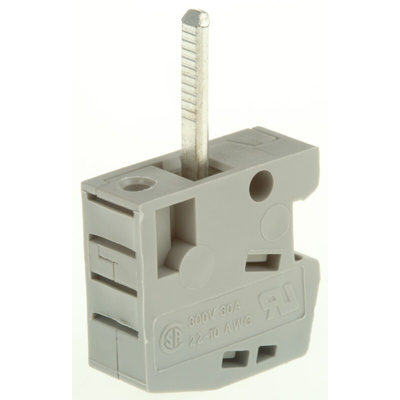

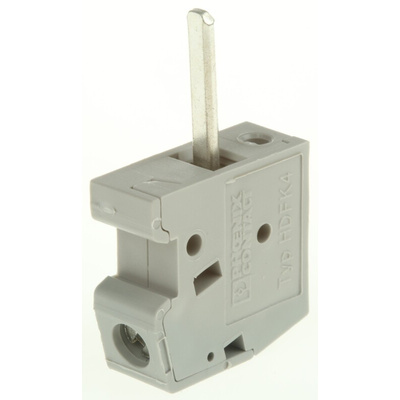

0707086, Phoenix Contact, HDFK4 PCB Terminal Block

HDFK Panel terminal blocks - Phoenix Contact

The HDFK series are terminal blocks that are designed to feed-through a panel. They come with all the same benefits of a traditional terminal PCB mounted terminal block however the mounting is different. The HDFK are screw terminal blocks that feature a low-temperature rise thanks to their maximum contact force and also benefit from a tool-free snap-in connection that allows you to effortlessly mount the block to the device panel. Not to mention, they can handle a load current of 32 A with a nominal voltage of 400 V.

The housing is made from a durable grey polyamide material with Cu alloy plated contacts.

Features and benefits:

• Terminal blocks mount without any tools, allowing for an easy install


• 8.1mm Pitch


• Screw connection method with a tension sleeve (M3 screw)


• Automatic panel thickness compensation enables universal use


• cross-section: 0.2 mm² - 6 mm²


• Accepts wire from 10 AWG up to 24 AWG

0707086 - HDFK Panel terminal block

The 0707086 includes all the same specifications as above, however, this version is slightly smaller than the rest of the terminal blocks in this series. Dimensions can be found below for the 0707086.

Dimensions:

• Width: 8.1mm


• Height: 21mm


• Pitch: 8.1mm
