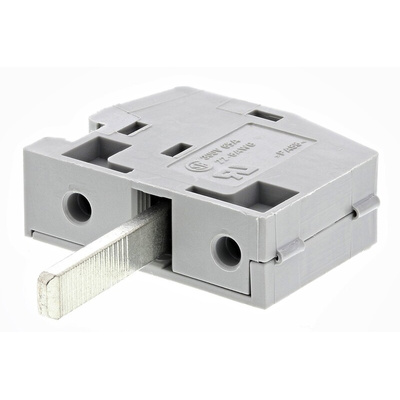

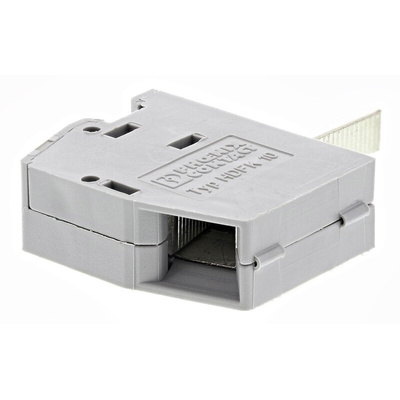

0707073, Phoenix Contact COMBICON Power Series HDFK 10 Non-Fused Terminal Block, 1-Way, 57A, 20 → 6 AWG Wire, Screw Down

HDFK Panel terminal blocks - Phoenix Contact

The HDFK series are terminal blocks that are designed to feed-through a panel. They come with all the same benefits of a traditional terminal PCB mounted terminal block however the mounting is different. The HDFK are screw terminal blocks that feature a low-temperature rise thanks to their maximum contact force and also benefit from a tool-free snap-in connection that allows you to effortlessly mount the block to the device panel. Not to mention, they can handle a load current of 32 A with a nominal voltage of 400 V.

The housing is made from a durable grey polyamide material with Cu alloy plated contacts.

Features and benefits:

• Terminal blocks mount without any tools, allowing for an easy install


• 8.1mm Pitch


• Screw connection method with a tension sleeve (M3 screw)


• Automatic panel thickness compensation enables universal use


• cross-section: 0.2 mm² - 6 mm²


• Accepts wire from 10 AWG up to 24 AWG
