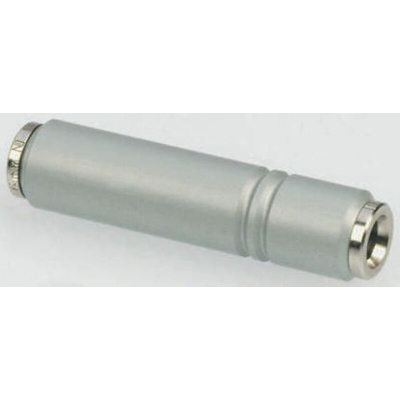

T50P0004, Norgren T50P Non Return Valve, 4mm Tube Inlet, 4mm Tube Outlet, -0.9 to 16bar, Клапан

IMI Norgren Non-Return Valve, Stainless Steel Spring, Nitrile Rubber Seals - T50 Series - T50P0004

Need a one-stop solution to prevent air from flowing back up your pneumatic system? Choose this non-return valve from IMI Norgren that allows air to flow in one direction only. With a cracking pressure of 0.03 bar, the valve opens even when there is a low-pressure differential between the inlet and outlet for precise operation. Thanks to an operating pressure range of -0.9 to 16 bar, it's suitable for use in vacuum environments and heavy-duty applications. Since the component also features tube connections of 4mm, it's widely compatible with many fluid and gas systems.

Features & Benefits

• Wide operating temperature range between -20°C and +80°C to withstand harsh environments
• Quick and easy installation via line mounting or push-in connection
• Nickel-plated brass collet provides a durable link

Applications

• Oil and gas pipelines
• Water treatment plants
• Food and beverage processing
• Pharmaceutical production

How durable is this non-return valve?

Thanks to its anodised aluminium body, it's resistant to wear and corrosion for long-lasting durability.

How much does this non-return valve weigh?

It weighs 10g, so you can trust it adds minimal strain to your pneumatic system.

T50 Series In Line Non-Return Valve Data Sheet

Catalogue - Industrial Automation
