T50P0006, Norgren T50P Non Return Valve, 6mm Tube Inlet, 6mm Tube Outlet, -0.9 to 16bar, Клапан

IMI Norgren Tube-To-Tube Non-Return Valve, 6mm Ports, -0.9 to 16 Bar Operating Pressure - T50P Series - T50P0006

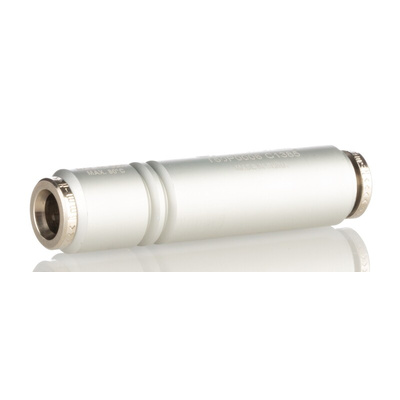

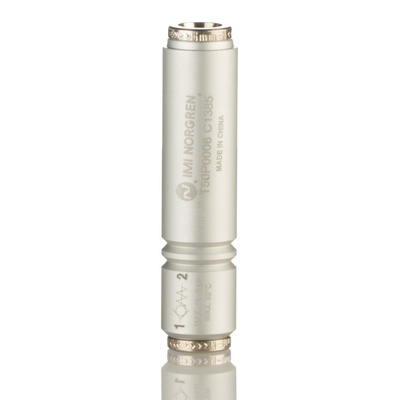

Maintain a single-direction flow of media in your pneumatic system using this non-return valve from IMI Norgren. It allows fluid to flow through one way and blocking it from reversing its direction. As it works automatically without manual interventions, it saves you time and effort. The unit has a tube-to-tube design, with both ends featuring 6mm tube connections for quick and efficient mounting. Thanks to its broad operating pressure range between -0.9 to 16 bar, you can rely on this valve in both low-pressure and high-pressure applications.

Features & Benefits

• Cracking pressure of 0.03 bar for reliable sensitivity to fluid flow
• Wide operating temperature range between -20°C and +80°C to withstand demanding conditions
• Aluminium housing material is corrosion-resistant for durability in harsh environments.

Applications

• Water treatment plants
• Hydraulic equipment
• Industrial pumps

What's meant by cracking pressure?

Cracking pressure is the minimum pressure level that causes the non-return valve to open for fluid flowing in from the inlet port. Knowing the cracking pressure lets you select the appropriate non-return valve for your pneumatic application.
