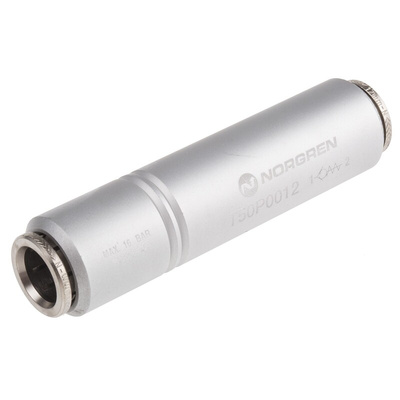

T50P0012, Norgren T50P Non Return Valve, 12mm Tube Inlet, 12mm Tube Outlet, -0.9 to 16bar, Клапан

IMI Norgren Non Return Valve, 0.03 Bar Cracking Pressure, 16 Bar Maximum Operating Pressure - T50P Series - T50P0012

Looking for a device to control airflow in your pneumatic system? Choose this non return valve from IMI Norgren. It's compatible with filtered air, vacuums and lubricated or non-lubricated mediums, so it's a versatile choice. By ensuring air flows consistently in one direction only, it cuts out potentially damaging backflow pressure. The tube style inlet and outlet both feature push-in connection ports that make installation and maintenance straightforward, without the need for specialist tools.

Features & Benefits

• +0.03 bar cracking pressure means air flows easily through the valve with no leakage
• -0.9 to 16 bar operating pressure range means it's suitable for use in a wide range of applications
• Anodised aluminium body resists corrosion so is suitable for use in damp conditions
• Lightweight at only 64g so won't add excessive load to your setup

Applications

• Pneumatic systems
• Process control
• Factory automation

Will this non return valve work in demanding conditions?

This device operates in a temperature range of -20°C to +80°C, so it can handle the demands of industrial settings. .

T50 Series In Line Non-Return Valve Data Sheet
