1200270090, Brad from Molex Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

These 2m leads are available in 3, 4 or 8 way versions with a straight or right angle head incorporating an M8 anti-vibration coupling nut. There is a choice of PVC cable, for general purpose applications, or high-flex PUR cable, for extra chemical resistance (typically to oil based products) or continuous flexing applications where cable durability is required.

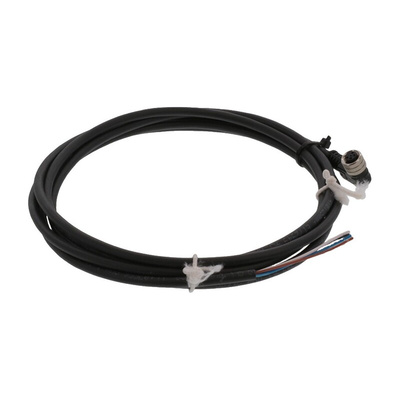

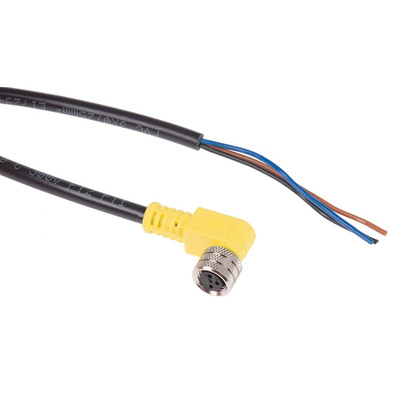

Brad from Molex Right Angle Female M8 to Free End Sensor Actuator Cable, 2m Length, 24AWG - 1200270090

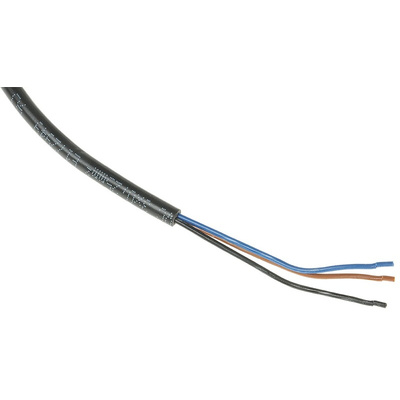

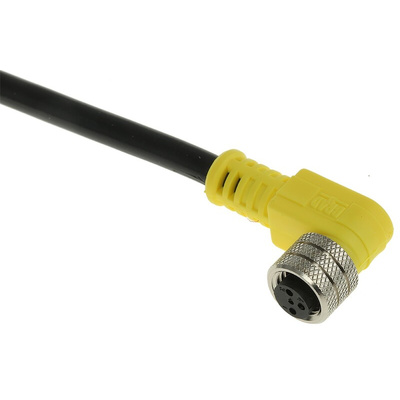

Need to connect a sensor to your industrial equipment? Opt for this weatherproof cable by Brad from Molex. It has a threaded female M8 connector on one end and the other end is unterminated, so you can attach an adapter to suit your system. To ensure a solid connection and to reduce the risk of accidental disconnection, the M8 connector has a coupling nut. Sensor actuator cables like this one are frequently found with proximity sensors in factory production lines.

• Polyurethane (PUR) connector body provides protection from electric shock, as well as resistance to oils and abrasion
• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water
• Cable length of 2m for easy access to connection points
• Copper-alloy contacts ensure optimal electrical conductivity

Applications

• Marine industry
• Gas plants
• Conveyor belt systems
• Automated manufacturing

What's the operating temperature range of this cable?

This cable has an operating temperature range of -25°C to +80°C, so it's suitable for use in demanding environments.

Brad Harrison - M8

The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.

Master Part Key

Datasheet - 1200270090

Line Drawing - 1200270090
