1200700395, Brad from Molex Cable assembly, 300mm, Кабельная сборка

Panel Plugs & Sockets

Male and female 4 way panel mount receptacles. Stock no. 351-443 offers the option to convert glanded switches into connector versions by simply screwing the PG13.5 threaded end of the receptacle into the appropriate proximity switch.

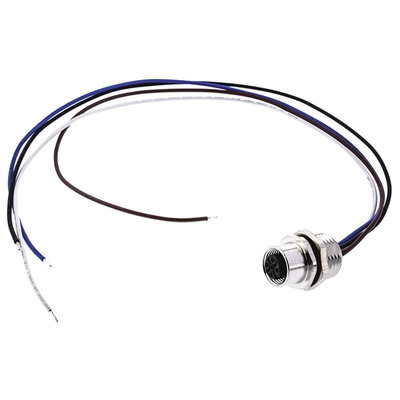

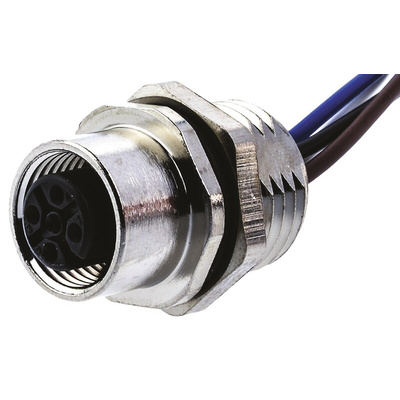

Brad from Molex Female M8 to Unterminated Cable Assembly, 300mm Length, 22AWG - 1200700395

Choose this Brad from Molex cable assembly to establish connections between your equipment and proximity sensors. One end of the component has a threaded M8 female connector and the other end is unterminated, so you can add whatever fitting suits your setup. It has socket contacts made of copper alloy that are highly conductive for a reliable connection. A polyurethane (PUR) contact carrier and polyvinyl chloride (PVC) sheath provide protection from electric shocks, as well as resistance to oils and abrasion. Assemblies like this one are commonly used in factory automation systems.

• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water
• Operating temperature range of -20°C to +90°C for use in demanding environments
• Viton fluoroelastomer O-ring provides resistance to oils and chemicals

Applications

• Process and packaging equipment
• Material handling equipment

Is this cable shielded?

This cable comes without shielding, so it's flexible and takes up minimal space.

What's the voltage rating and ampage of this cable?

This cable has a voltage rating of 250V AC/DC and can carry up to 4A.
