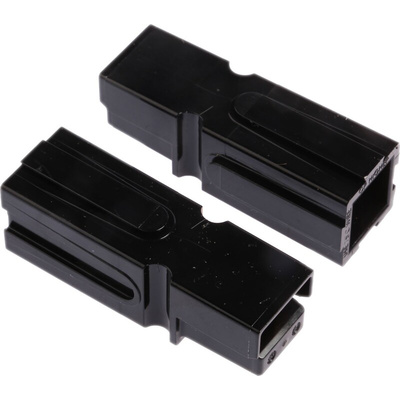

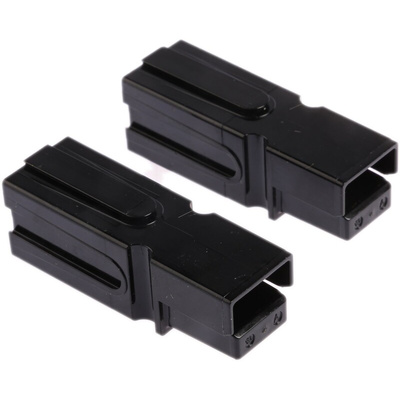

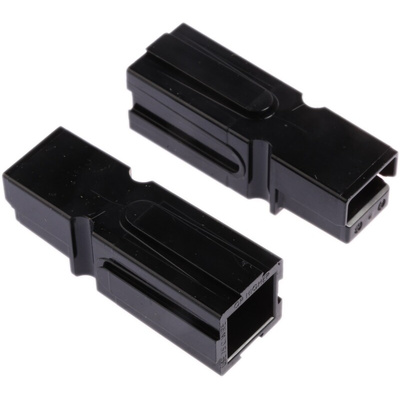

5916G4, Anderson Power Products E Heavy Duty Power Connector, 1 Contacts

30A, 75A, 120A Contacts and Housing

Single pole modules which join together with a dovetail to allow the assembly of custom configurations. Module halves are genderless ensuring design flexiblity and ease of assembly. Cyanoarcrylate adhesives may be ulitised to permanently secure module housings together.

Features:

Silver Plated copper contacts in 30A, 75A and 120A ratings
Contacts can be crimped or soldered & snap fit into single pole housing
Suitable for process control, panel building and other power applications
Contacts derate when grouped with 4 or more modules, see selection guide table

30A Contacts stock no. 534-963
For suitable crimp tooling see stock no. 531-009 or crimp tool frame stock no. 848-391, with die set stock no. 848-414

75A Contact stock no. 290-6118
For suitable crimp tooling see stock no. 445-885 and die set stock no. 290-5941

120A Contacts stock no. 290-6174
For suitable crimp tooling see stock no. 445-885 and die set stock no. 291-9350

Approvals

UL Listed E26226, CSA Certified LR 25154

Note

The PP75 series has bee re-tested under the UL standard and due to this it has been up-rated to 120A. The housing will still state PP75 and show 75A rating until further notice. Please refer to the new datasheet for details.

Approvals

UL Listed E26226, CSA Certified LR 25154
