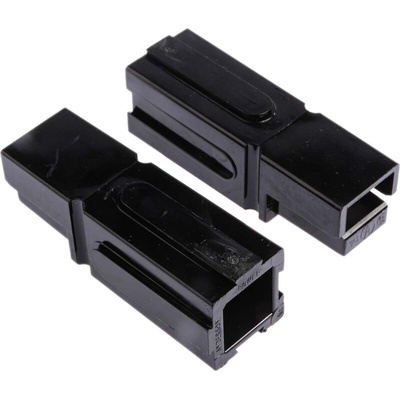

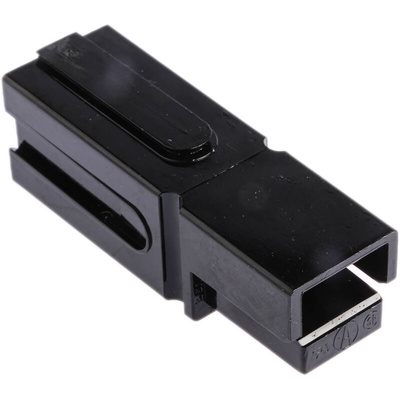

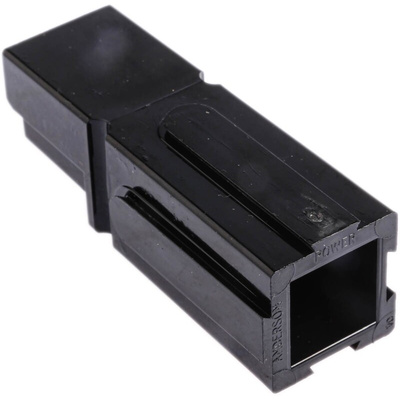

1321G1, Anderson Power Products PP120 Straight Heavy Duty Power Connector Housing

2906180
Номер производителя: 1321G1Производитель: Anderson Power Products
Цена за шт. (норма упаковки 2 шт)
2649.00 руб. (С НДС) *
Количество 2+ 40+ 150+ 600+ 1200+
Цена 2649.00 руб. 2559.00 руб. 2457.00 руб. 2373.00 руб. 2274.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

30A, 75A, 120A Contacts and Housing

Single pole modules which join together with a dovetail to allow the assembly of custom configurations. Module halves are genderless ensuring design flexiblity and ease of assembly. Cyanoarcrylate adhesives may be ulitised to permanently secure module housings together.

Silver Plated copper contacts in 30A, 75A and 120A ratings
Contacts can be crimped or soldered & snap fit into single pole housing
Suitable for process control, panel building and other power applications
Contacts derate when grouped with 4 or more modules, see selection guide table

30A Contacts stock no. 534-963

For suitable crimp tooling see stock no. 531-009 or crimp tool frame stock no. 848-391, with die set stock no. 848-414

75A Contact stock no. 290-6118

For suitable crimp tooling see stock no. 445-885 and die set stock no. 290-5941

120A Contacts stock no. 290-6174

For suitable crimp tooling see stock no. 445-885 and die set stock no. 291-9350

Approvals

UL Listed E26226, CSA Certified LR 25154

Note

The PP120 series has bee re-tested under the UL standard and due to this it has been up-rated to 240A. The housing will still state 120SB and show 120A rating until further notice. Please refer to the new datasheet for details.

Approvals

UL Listed E26226, CSA Certified LR 25154

Техническая спецификация
pdf10768 120Amp Modular Multipole Connectors
pdfDatasheet
Кол-во контактов:
1
Количество рядов:
1
Номинал тока:
240A
Ориентация корпуса:
Прямой
Род:
Female
Серия:
PP120
Тип:
Корпус разъема
