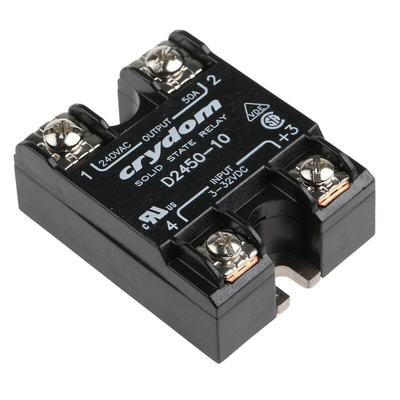

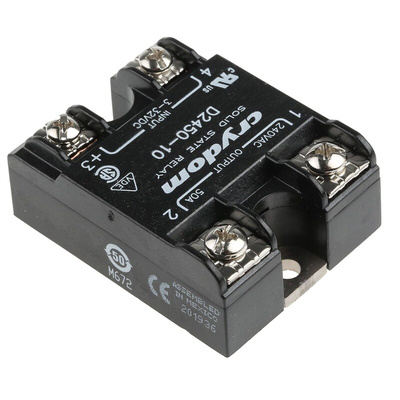

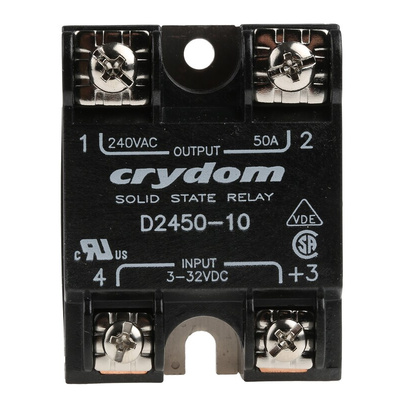

D2450-10, Sensata / Crydom 1 Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V rms Load, 32 V Control, Реле

Series 1, 10-125A, 240Vac, ac O/P SSRs

600V blocking capacity
SCR Output
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8pF
Isolation Voltage 4kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 50A Current Rating, 4 to 32V DC Control Voltage Range - Series 1 Series - D2450-10

Switch your equipment on and off with this solid-state relay from Sensata | Crydom. It features an instantaneous turn-on time of 0.02ms to give you fast results and high levels of productivity. Thanks to the long MTBF of 1,328 years at +40°C, it's a long-lasting choice. This device has a current rating of 50A for use in demanding applications. It's suitable for use in heating, lighting and motion control applications.

• Anti-rotation barriers prevent screws from loosening to ensure secure installation
• Wide operating temperature range between -40°C and +80°C for use in harsh industrial environments

Why should I choose an SSR?

Since there are no moving parts, SSRs last longer than their mechanical counterparts. Their switching speeds are also faster to give you almost instantaneous response times.

How does this unit's SCR output impact its performance?

A silicone-controlled rectifier (SCR) is a type of solid-state switch that lets you control variable amounts of electric power. This means you can change motor speeds to suit your system's needs.

Approvals

UL; CSA; VDE

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

VDE 10143

Series1 240VAC Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - S1 Series

Installation Sheet - D2450-10
