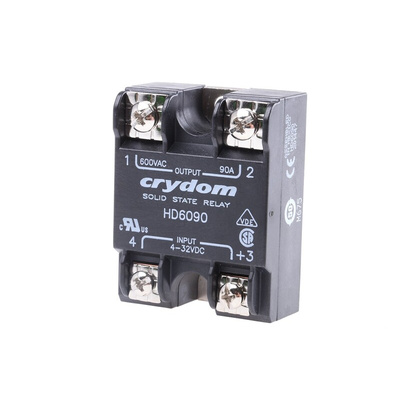

HD6090, Sensata / Crydom Solid State Relay, 90 A Load, Panel Mount, 660 V ac Load, 32 V Control, Реле

Crydom HA/HD Series Solid State Relays

Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings.

Features and Benefits

SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
AC or DC control
Direct Bond Copper (DBC) substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

Approvals

UL; C-UL recognised; VDE

Crydom Solid State Relay and Accessories

CSA 0816890000

Series HA60/HD60 25-125Amp 48-660 Vac AC Output

UL E116950

UL REC FOR CANADA E116950

VDE 10143

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
