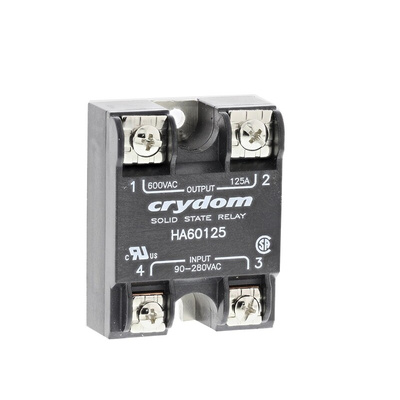

HA60125, Sensata / Crydom HA Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 280 Vrms Control, Реле

Sensata | Crydom Solid-State Relay, 90 to 280V AC Control Voltage Range, 125A Rated Load Current - HA Series - HA60125

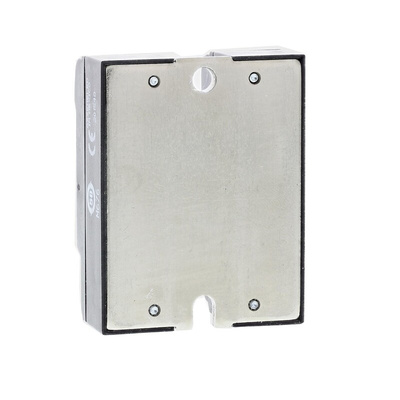

Take charge of your automated equipment with this solid-state relay from Sensata | Crydom. It switches power on and off in a flash to give you full control over industrial circuits. The highly conductive DBC substrate ensures efficient heat dissipation, so it doesn't break a sweat in challenging applications. This relay has no moving parts, so there's minimal risk of wear. It's a breeze to wire without any special tools, thanks to its screw terminals. An SSR like this one is commonly used in medical equipment and lighting systems.

Features & Benefits

• Zero-cross switching means it turns on when the load voltage is near zero for maximum efficiency and reduced noise
• Rated load current of 125A for use in heavy-duty applications
• Anti-rotation barriers prevent movement during heavy vibrations
• Performs reliably at temperatures between -40°C and +80°C for use in harsh environments

What's the rated load current of this SSR?

It has a rated load current of 125A, so it packs a punch in heavy-duty applications.

Approvals

UL; C-UL recognised; VDE

Crydom Solid State Relay and Accessories

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - HA60125

Line Drawing - HA60125
