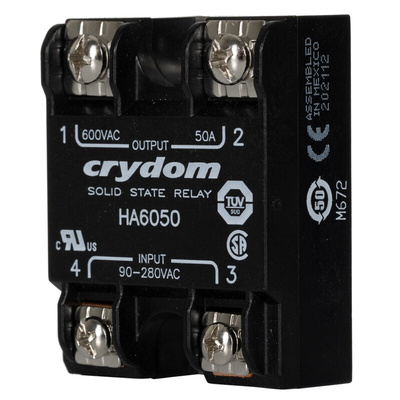

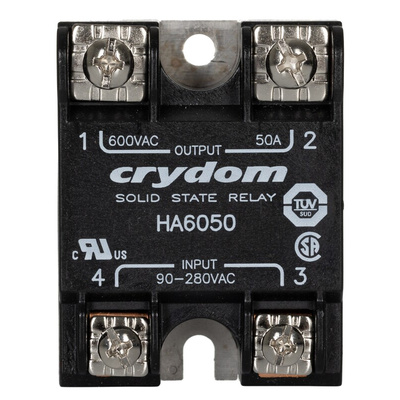

HA6050, Sensata / Crydom HA Series Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 280 V Control, Реле

Sensata | Crydom Solid-State Relay, Anti-Rotation Barriers, 50A Rated Load Current - HA Series - HA6050

Put this solid-state relay from Sensata | Crydom in charge of your circuit for reliable power switching. When it senses an incoming electrical signal, it converts it to an optical one to turn the circuit on and off. Wear and tear are no match for this SSR, as it doesn't have any moving parts. Thanks to its broad operating temperature range between -40°C and +80°C, this piece of kit can take the heat in challenging conditions. You can use it in your household appliances and HVAC systems.

Features & Benefits

• Maximum load current of 50A for use in high-power systems
• Housing has anti-rotation barriers for stability in vibrating conditions

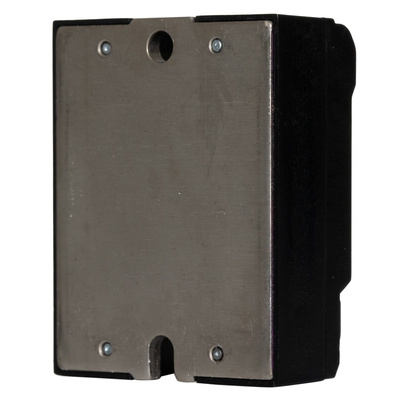

• Rugged aluminium baseplate for resistance to corrosion and impact
• MTBF of more than 11 million hours at +40°C for long-lasting performance

What's the turn-on and turn-off time of this SSR?

It has a turn-on time of 20ms and a turn-off time of 30ms, so it switches your circuit in the blink of an eye.

How do I mount this SSR?

It's designed for panel mounting, so you can install this SSR by simply screwing it in place on the surface of your machinery.

Approvals

UL; C-UL recognised; VDE

Crydom Solid State Relay and Accessories

CSA 0816890000

Series HA60/HD60 25-125Amp 48-660 Vac AC Output

UL E116950

UL REC FOR CANADA E116950

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - HA/HD48 Series
