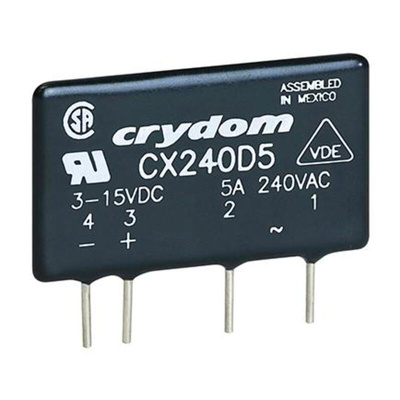

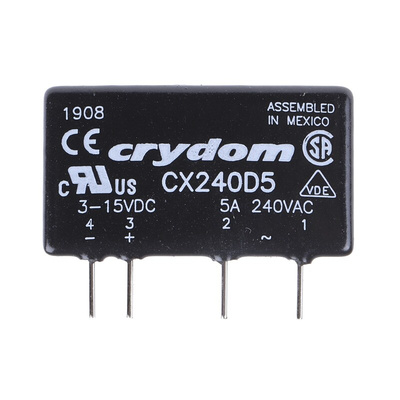

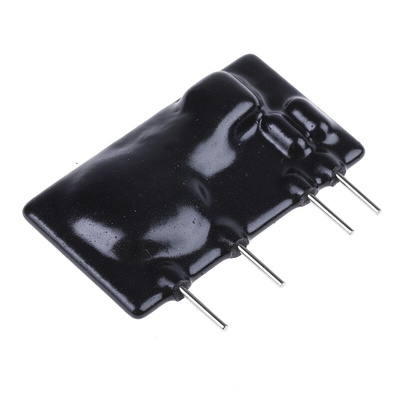

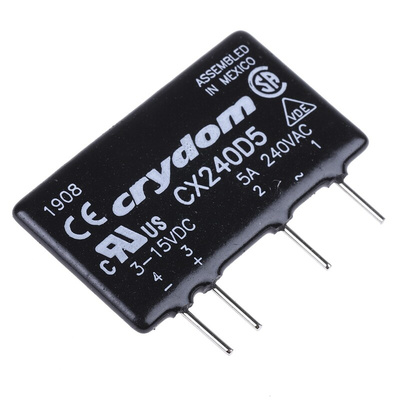

CX240D5, Sensata / Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 280 V ac Load, 15 V dc Control, Реле

CX Series SIL SSR, 5A at 12 to 660Vac

Exceptional surge rating and steady state rating of 5A ac
Models to switch from 48-660Vrms
250A pk 1-cycle surge capability
Input-Output capacitance: 10pF
Zero-cross switching where stated otherwise random-fire
Operating temperature range: -30 to +80°C
Dimensions H33mm x W7.6mm x D43.1mm

Approvals

UL, CSA, VDE

Sensata | Crydom Solid-State Relay, 3 to 15V DC Control Voltage Range, 12 to 280V AC Operating Voltage Range - CX Series - CX240D5

Choose this solid-state relay from Sensata | Crydom to effectively control your PCB-based processes. Thanks to its wide operating voltage range of 12 to 280V AC, it's suitable for use in low-voltage applications. Zero cross-switching means it generates low noise when switching on for enhanced reliability. Solder-free connection pins make installation quick and easy as you can simply press them into place on your PCB. A thermally conductive epoxy housing insulates live components to limit the risk of electric shock. The lightweight device weighs only 11g, so it will place minimal strain on your equipment. Use it in medical systems, consumer electronics and aerospace applications.

Features & Benefits

• Compact size of 43.1 (L) x 7.6 (W) x 25.4mm (H) to maximise packing space on your PCB
• Broad operating temperature range between -10°C and +80°C for use in harsh conditions

What's the load current rating of this SSR?

This SSR has a load current rating of 5A for use in low-power systems.

What's the advantage of a solid-state relay?

A solid-state relay has no moving parts, so it's less susceptible to wear and lasts longer than an electromechanical relay.

Approvals

UL; CSA; VDE

CSA 0816890000

VDE 070938 UG

UL E116950

UL REC FOR CANADA E116950

CX Series Datasheet

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CX240D5
