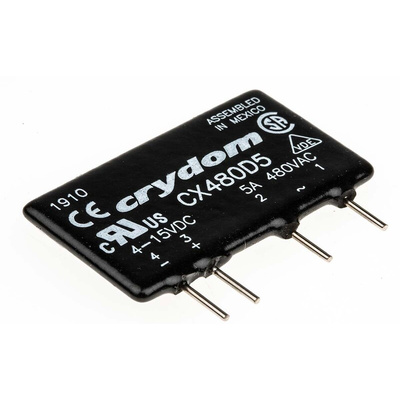

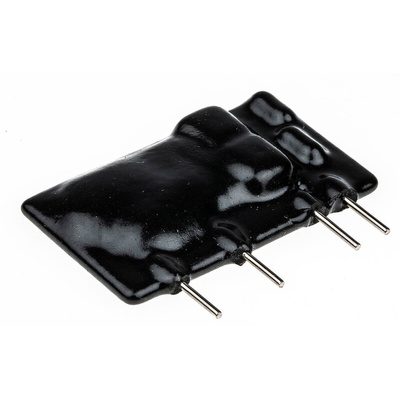

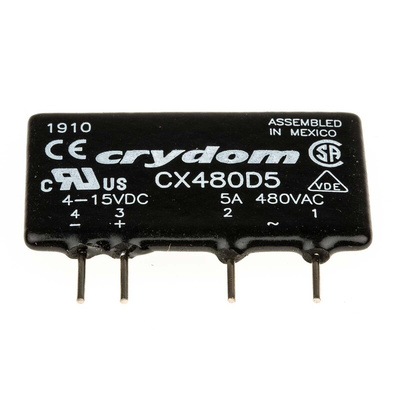

CX480D5, Sensata / Crydom CX Series Series Solid State Relay, 5 A Load, PCB Mount, 660 V ac Load, 15 V Control, Реле

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 4 to 15V DC Control Voltage Range - CX Series - CX480D5

Effectively switch your circuits on and off with this solid-state relay from Sensata | Crydom. The unit uses semiconductors to perform the switch in a fraction of the time a mechanical relay would take. As it has no moving parts, there's minimal risk of wear, so you can expect it to last for the long haul. Zero-cross switching means you won't need to worry about an inrush current damaging sensitive components. You can use this SSR in applications such as industrial fans and conveyors.

Features & Benefits

• Wide operating temperature range between -30°C and +80°C for use in harsh industrial environments
• Compact dimensions of 43.1 (L) x 25.4 (W) x 7.6mm (D) to maximise packing space on your PCB

What are the benefits of an SCR output?

An SCR output allows you to switch the power very quickly and with a high degree of control. It avoids generating harmonics that can distort the sine wave of the power input, helping you keep energy usage down.

Approvals

UL; CSA; VDE

Series CX

CSA 0816890000

VDE 070938 UG

UL E116950

UL REC FOR CANADA E116950

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CX480D5
