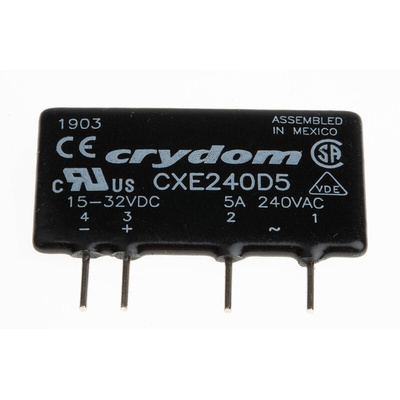

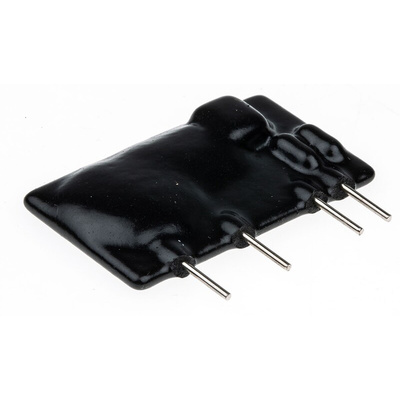

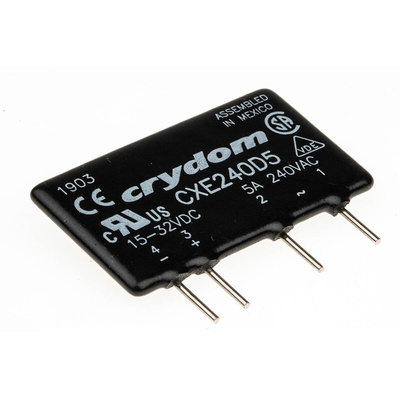

CXE240D5, Sensata / Crydom Solid State Relay, 5 A Load, PCB Mount, 280 V ac Load, 32 V Control, Реле

CX Series SIL SSR, 5A at 12 to 660Vac

Exceptional surge rating and steady state rating of 5A ac
Models to switch from 48-660Vrms
250A pk 1-cycle surge capability
Input-Output capacitance: 10pF
Zero-cross switching where stated otherwise random-fire
Operating temperature range: -30 to +80°C
Dimensions H33mm x W7.6mm x D43.1mm

Approvals

UL, CSA, VDE

Sensata | Crydom Solid-State Relay, 15 to 32V DC Control Voltage, 5A Rated Load Current - CX Series - CXE240D5

Confidently manage power to your PCB with this solid-state relay from Sensata | Crydom. Its rated load current of 5A makes it a good choice for light and medium-duty applications. Thanks to its high insulation resistance of 1000MΩ at 500V DC, it ensures that little to no current will escape for efficient operation. To protect your circuit board in the event of a voltage spike, this relay has a transient overload protection of 600V. You'll find this component used in electronics and computing applications.

Features & Benefits

• Broad operating temperature range between -30°C and +80°C for use in demanding conditions
• Thermally conductive epoxy coating dissipates heat for improved electrical efficiency
• Small dimensions of 43.1 (L) x 7.6 (W) x 25.4mm (H) to maximise space on your PCB

What's zero-cross switching?

A zero-cross relay switch only turns on when the load voltage is close to zero, producing less electrical noise when switching. Reduced noise is essential for systems that send digital data, such as home automation control setups or modems.

Approvals

UL; CSA; VDE

Series CX

CSA 0816890000

VDE 070938 UG

UL E116950

UL REC FOR CANADA E116950

Line Drawing - CXE240D5
