CXE380D5, Sensata / Crydom DRA1 SERIES Series Solid State Relay, 5 A Load, PCB Mount, 530 V ac Load, 32 V Control, Реле

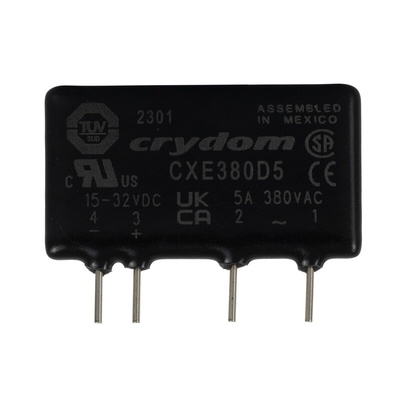

Sensata | Crydom Solid-State Relay, Zero-Cross Switching, 48 to 530V AC Operating Voltage Range - CX Series - CXE380D5

When you want switching you can rely on, opt for this solid-state relay from Sensata | Crydom. It works by converting an electrical signal to an optical one and sending it to the circuits. The zero-cross switching function means this unit switches power when the load voltage is near 0V, helping to block off high-frequency noises for clean and clear signal delivery. This component is a flawless fit for sensitive applications such as robotics and medical appliances.

Features & Benefits

• Maximum surge current of 250Apk to stand up to current overloads
• Compact external dimensions of 25.4 (H) x 43.1 (L) x 7.6mm (D) for space-saving mounting
• Maximum turn-on and turn-off time of half a cycle for rapid switching
• Broad operating temperature range between -30°C and +80°C for use in challenging environments

What's the operating voltage of this SSR?

This SSR has a broad operating voltage range between 48 and 530V AC, so it's suitable for use in low to medium-power electrical systems.

How do I mount this SSR?

To mount this SSR, simply solder the attached pins to your board.

Approvals

UL; CSA; VDE

Series CX

CSA 0816890000

VDE 070938 UG

UL E116950

UL REC FOR CANADA E116950

Line Drawing - CXE380D5
