DMO063, Sensata / Crydom DMO Series Solid State Relay, 3 A Load, PCB Mount, 60 V dc Load, 10 V dc Control, Реле

ASO/DM - up to 3A in a Miniature SIL SSR

DC controlled
AC models - SCR output
DC model - MOSFET output
Can switch loads up to 3A
Isolation voltage 2500 Vrms
All have zero cross switching except for stock nos. 291-2466 and 738-5507
Applications include lighting, inductive loads e.g. solenoids, motors
Operating temperature range: -30 to +80°C
Dimensions: H19.0mm x W10.2mm x D24.1mm

Caution

Derating will limit the maximum load current at temperatures above 20°C. (50°C for stock nos. 218-1909 , 291-2450) and 738-5507

Approvals

UL, CSA (218-1909 & 291-2450)

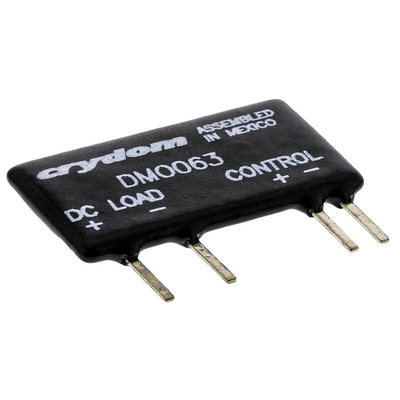

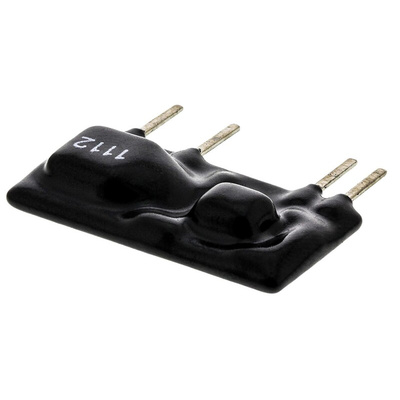

Sensata | Crydom Solid-State Relay, 24.1mm Length, 5.1mm Width - DMO Series - DMO063

Looking for a reliable switching solution for your machinery? Choose this solid-state relay from Sensata |Crydom. When it receives an input power supply, it transfers it to the electrical circuits to turn them on or off. For versatility, this unit has a broad operating voltage range between 0 and 60V DC. Thanks to its compact dimensions of 24.1 (L) x 5.1 (W) x 12.7mm (H), you can easily fit it into small spaces. You'll typically find this relay used in lighting fixtures and electric motors.

Features & Benefits

• Maximum turn-on time of 50μs and turn-off time of 300μs for rapid switching
• Wide operating temperature range between -30°C and +80°C for use in demanding conditions

What's the difference between a solid-state relay and an electromechanical relay?

A solid-state relay powers the circuits by converting the electrical signal to an optical one, eliminating the need for physical contacts. An electromechanical relay works by closing or opening a set of contacts when it receives an electrical supply.

How do I mount this solid-state relay?

Thanks to its PCB mounting design, you can mount this solid-state relay by soldering the built-in pins to your circuit board.

Datasheet

Line Drawing - DMO063
