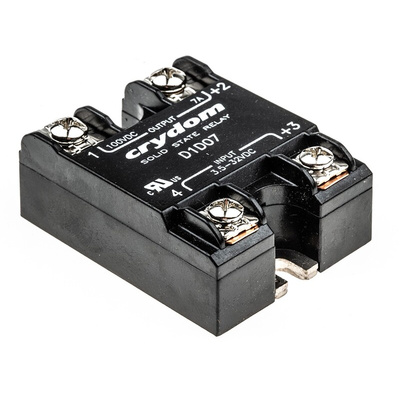

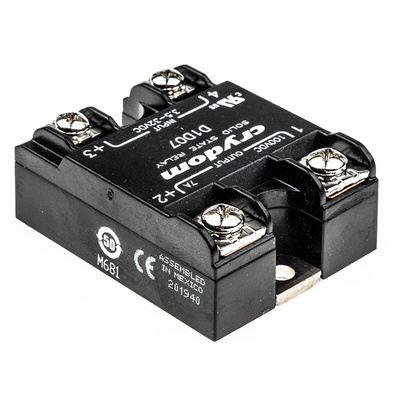

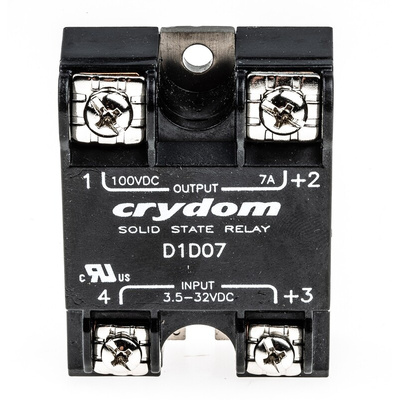

D1D07, Sensata / Crydom 1-DC Series Solid State Relay, 7 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 7A Rated Load Current, -40°C to +100°C Operating Temperature Range - 1-DC Series - D1D07

Switch power on and off in your industrial equipment using this solid-state relay from Sensata |Crydom. It converts the input electrical signal to an optical one to activate the circuits. As there are no moving contacts, there's minimal risk of mechanical wear, helping to ensure a longer service life. This unit has anti-rotation barriers in its housing for secure installation. You can use this SSR to control robotic and electronic devices.

Features & Benefits

• Tough aluminium baseplate is resistant to impact and corrosion
• Broad operating temperature range between -40°C and +100°C for use in challenging environments
• Screw and clamp terminals for simple and secure wiring

How durable is this SSR?

This relay has an MTBF of over 21 million hours at a temperature of +40°C and over 11.5 million hours at +60°C, so you can rest assured it will last a long time.

How fast is this relay?

Thanks to its maximum turn-on and turn-off time of 100μs, this relay provides quick power transmission to your circuits.

Approvals

UL; CE; ISO

DC Switching

UL E116950

UL REC FOR CANADA E116950

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - D1D07
