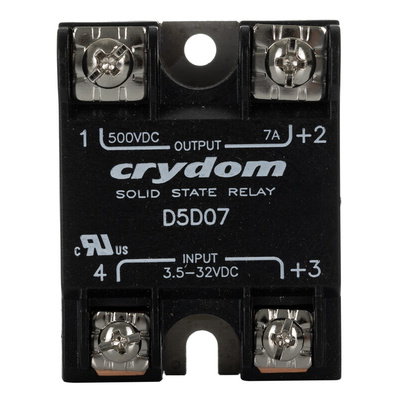

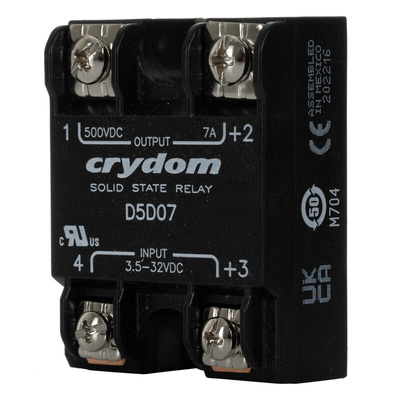

D5D07, Sensata / Crydom 1-DC Series Solid State Relay, 7 A Load, Surface Mount, 500 V Load, 32 V Control, Реле

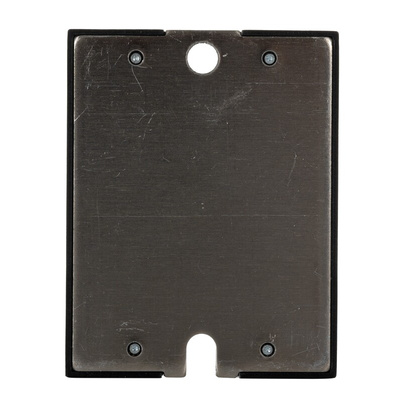

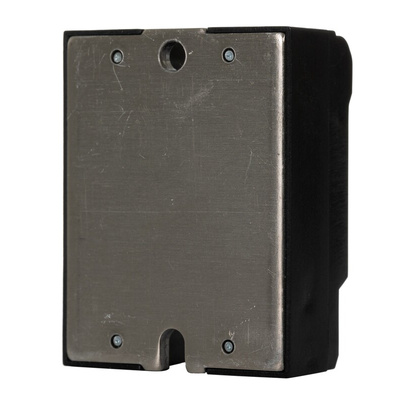

Sensata | Crydom Solid-State Relay, 8pF I/O Capacitance, Aluminium Baseplate Material - 1-DC Series - D5D07

Looking for a reliable switching solution for your low-power DC loads? Make the change to this solid-state relay from Sensata | Crydom. It opens and closes your circuit based on control signals sent to its sensor, eliminating the need for manual operation. This unit's self-extinguishing housing is a safe bet for volatile settings, as it stops burning in 10 seconds or less in the event of a fire. Screw terminals make it a cinch to connect wires without the need for special tools. The device stands strong in the face of vibration thanks to integrated anti-rotation barriers. You'll find relays like this used in industrial automation.

Features & Benefits

• Safe for use in harsh environments, thanks to its broad operating temperature range between -20°C and +80°C
• MTBF of more than 21 million hours at +40°C for long-term performance
• Current rating of 7A for use in light-duty applications
• Epoxy-free design reduces the risk of deformation due to expansion and contraction during operation

How do I mount this SSR?

The unit is designed for direct surface mounting on your panel to make installation a snap.

DC Switching
