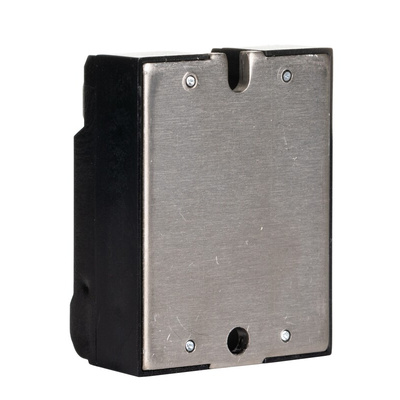

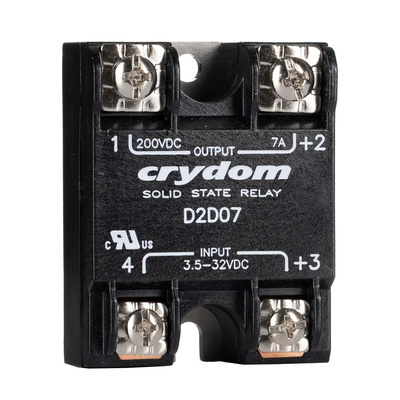

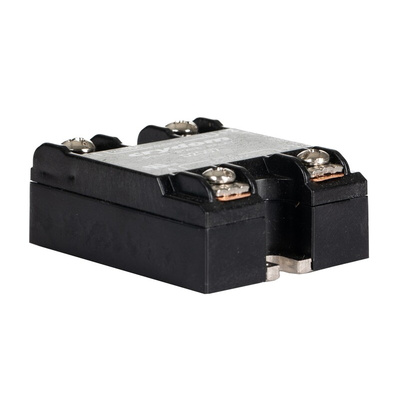

D2D07, Sensata / Crydom 1-DC Series Series Solid State Relay, 7 A Load, Surface Mount, 200 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, 100μs Turn-On Time, 1 to 200V DC Operating Voltage Range - 1-DC Series - D2D07

Switch a DC load without moving a muscle with this solid-state relay from Sensata | Crydom. As it has no moving parts, it won't wear down, even when put to work in demanding applications. Screw terminals make the unit a cinch to wire using just a screwdriver. They also offer a secure electrical connection that won't shake loose in the event of heavy vibrations. Choose a reliable relay like this one to open and close the electric circuits of industrial controls or IC equipment.

Features & Benefits

• Flame-retardant housing for safety in the event of a fire
• MTBF of over 21 million hours at +40°C for long-lasting performance
• EMC-compliant, meaning there's little chance of interference with nearby electronic devices
• Insulated to protect equipment against electrical hazards
• Wide operating voltage range of 1 to 200V DC for versatility

How quickly does this SSR open and close?

The component is quick off the blocks with a maximum opening and closing time of just 100μs, so it switches almost instantly.

Approvals

UL; CE; ISO

DC Switching

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - DC OUTPUT
