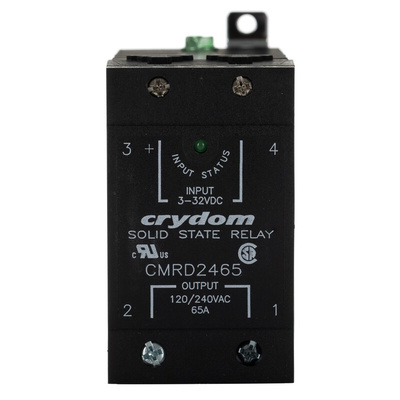

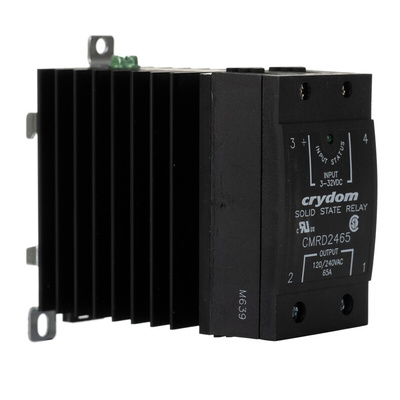

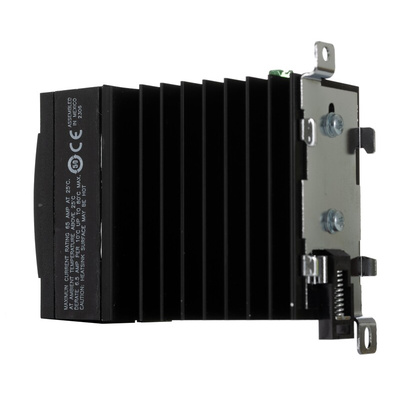

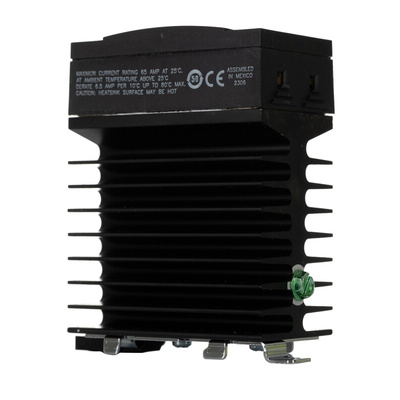

CMRD2465, Sensata / Crydom CMR24 Series Solid State Relay, 65 A Load, DIN Rail Mount, 280 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, DIN Rail Mounting, 65A Rated Load Current - CMR24 Series - CMRD2465

Switch your power seamlessly with this solid-state relay from Sensata | Crydom. It opens and closes a circuit without any moving parts, so it sidesteps wear and tear to give you a long service life. Thanks to its rated load current of 65A, it's a practical pick for high-power systems. The SPST configuration makes it ideal for use as a simple on/off switch. You can use this component in applications such as industrial control, robotics and medical technology.

Features & Benefits

• Zero-cross switching means it turns on when the voltage is close to 0V for enhanced efficiency and reduced noise
• Cage terminals help you make quick and secure electrical connections without the need for complex tools
• Integral heat sink prevents overheating
• Wide operating temperature range of -40°C to +80°C means it's safe to use in harsh industrial environments
• Compact dimensions of 109 (L) x 44.5 (W) x 76.2mm (H) for installation in tight spaces

How do I mount this SSR?

This device is designed for mounting on a standard DIN rail, so you can integrate it into your system in a jiffy.

Approvals

UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

MTBF Information

CMR24 Series Data Sheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
