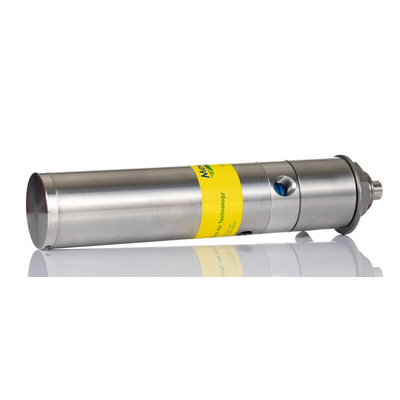

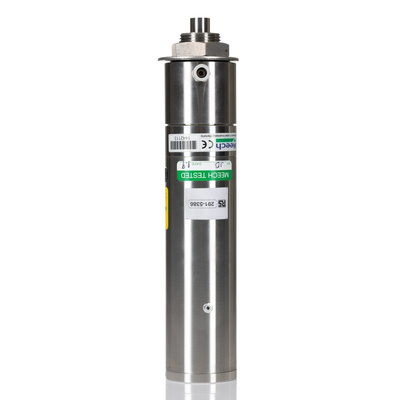

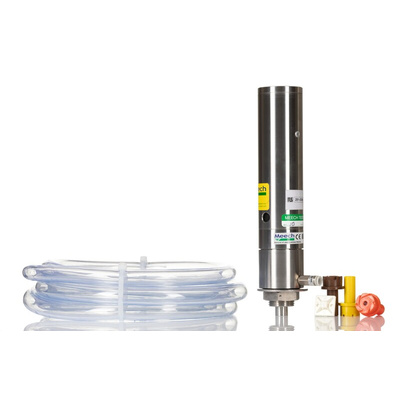

RS PRO 1500Btu/h 35cfm Pneumatic Cabinet Cooler

RS PRO 1500 Btu/h 35 CFM Pneumatic Cabinet Cooler

This pneumatic cabinet cooler from RS PRO helps you maintain the right temperature in cabinets, control panels or consoles. It also keeps out contamination from dust and water, making it a great alternative to a cooling fan.

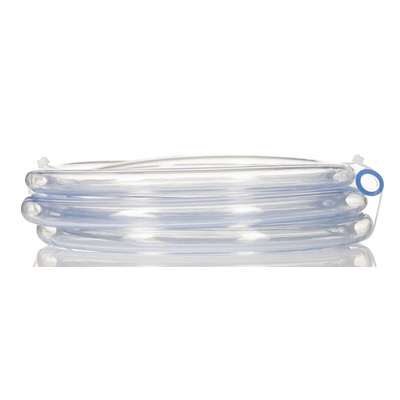

The cooler will cool cabinet volumes of up to 2 m³. It uses normal compressed air at 5-7 bar and can handle a maximum flow rate of 35 CFM (cubic feet per minute), with a maximum cooling capacity of 1,500 Btu/h (British thermal units/hour). It's silenced for quiet operation and its body is made from corrosion-resistant stainless steel with no moving parts, making it easy to maintain. Air flows into the cooler through a 1/4 in BSP (British Standard Pipe) inlet and is cooled before being piped into the cabinet through ducting (supplied with the cooler).

This kind of cooler is found in industrial PC cooling, CCTV camera cooling and product chilling cabinets.

Features and Benefits

• Pneumatic cabinet cooler
• Uses compressed air at 5-7 bar
• Fits into a 3/4 in BSPP (British Standard Parallel Pipe) clearance hole in the cabinet wall
• Maximum flow rate of 35 CFM
• Maximum cooling capacity of 1,500 Btu/h
• Fed through 1/4 in BSP air inlet
• Pressure relief valve
• Height of 196 mm
• Diameter of 45 mm
• Stainless steel body
• Control device not included
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

Installation Instruction Manual

RS PRO Datasheet
