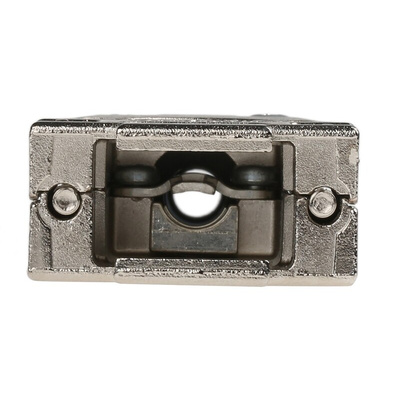

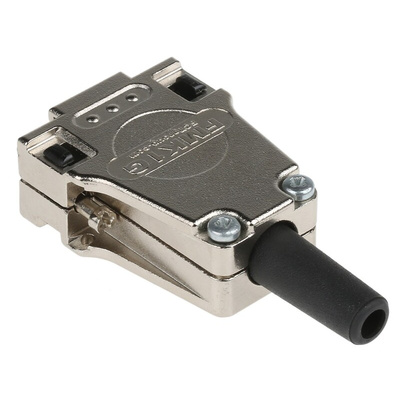

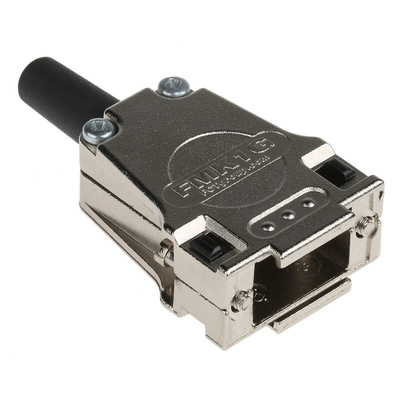

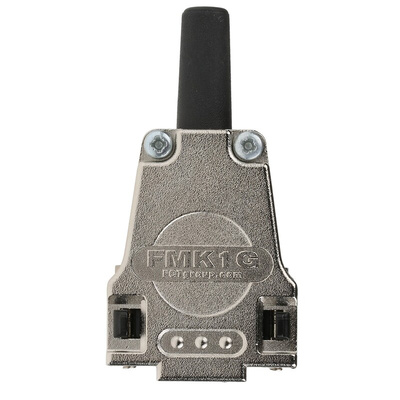

FMK1G / 1727040096, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 9 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell, 9 Contacts, Die-Cast Zinc Housing - FMK Series - FMK1G / 1727040096

Strengthen your D-sub connectors for use in harsh industrial environments with this backshell by FCT from Molex. It's made of die-cast zinc, so it resists the impact and corrosion you'd expect in demanding environments. Integrated strain relief is on hand to protect attached wires from damage caused by twisting and bending. Thanks to pre-mounted locking screws and a catch spring mechanism, it's simple to install this backshell.

• Broad operating temperature range of -35°C to +100°C for use with heavy-duty applications
• Width of 15mm provides enough space to accommodate special D-sub connectors

Applications

• Mining equipment
• Offshore industry

Can I use this backshell with other locking units?

Yes, it has a modular design to allow for flexible integration with knurled thumbs and slide locks.

FMK_FMKG

D Sub Connector Back Shell Datasheet
