FMK2G / 1727040098, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 15 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

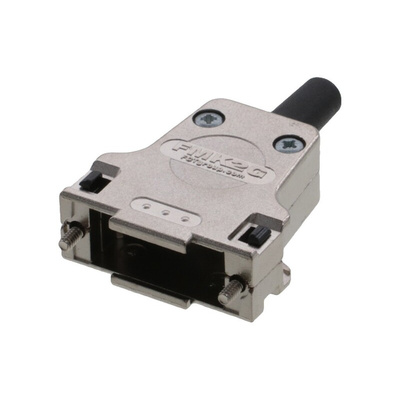

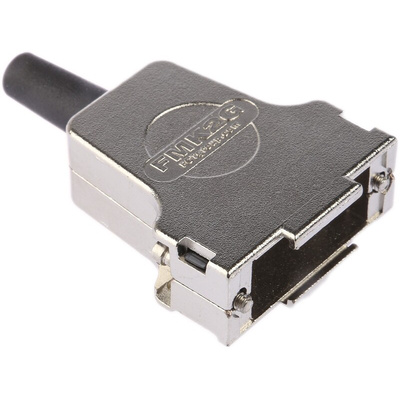

FCT from Molex D-Sub Backshell, 15 Way, Straight - FMK Series - FMK2G / 1727040098

Use this FCT metal backshell from Molex to protect your D-subminiature (D-sub) connector. The die-cast zinc housing material increases shielding from electromagnetic interference (EMI) and radio frequency interference (RFI) to optimise the performance of your connections. Nickel plating on the housing ensures resistance to corrosion for long-lasting use in harsh environments. Rely on this backshell to hold cables tightly to their connectors, prevent strain and prolong the service life of your cables.

Features & Benefits

• Straight cable orientation for simple routing and clear organisation
• Wide outlet accommodates a broad range of cable diameters for increased versatility
• Large inner chamber for D-sub connectors with special contacts for use in a variety of applications
• Broad operating temperature range of -35°C to +100°C for use in extreme environments

Applications

• Aircraft cabins
• Rack mount servers
• Remote radio heads (RRHs)
• Measurement control devices

How do I install this backshell?

The backshell has a catch-spring system and pre-mounted locking screws that allow you to quickly and securely install a D-sub connector without the need for special tools.
