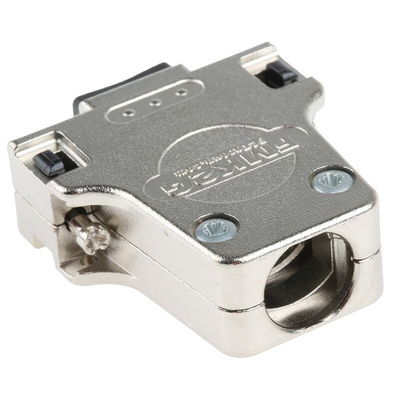

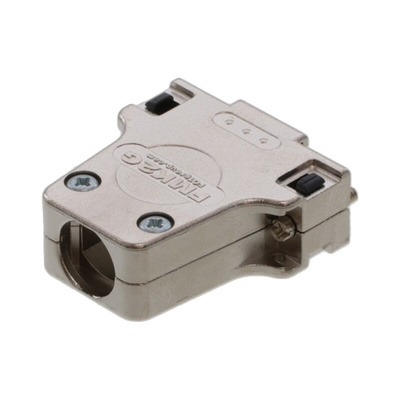

FMK2G-K201 / 1731110060, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 15 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell, 15 Way, Straight - FMK Series - FMK2G-K201 / 1731110060

This backshell by FCT from Molex increases the stability of your D-subminiature (D-sub) connection. It holds cables tightly to their connector to protect them against damage and includes a strain relief to prevent cracking and tearing. The backshell screws tightly in place to provide a secure connection that won't come loose. Its inner chamber fits D-Sub connectors with special contacts and its cable outlet is suitable for a wide range of cable sizes, making this a versatile choice.

Features & Benefits

• Die-cast zinc housing material to increase shielding from electromagnetic interference (EMI) and radio frequency interference (RFI)
• Nickel plating resists corrosion and rust for use in harsh environments
• Wide operating temperature range of -35°C to +100°C for use in extreme conditions

Applications

• Magnetic resonance imaging (MRI) machines
• Mobile computing
• Communications infrastructure

How does the rubber bushing in this backshell work?

The provided rubber bushing inserts over the opening in the housing and fits over your cable to create a layer of insulation. It protects your cable from the elements while also preventing short circuits by ensuring the cable remains separated from other cables in your set-up.
