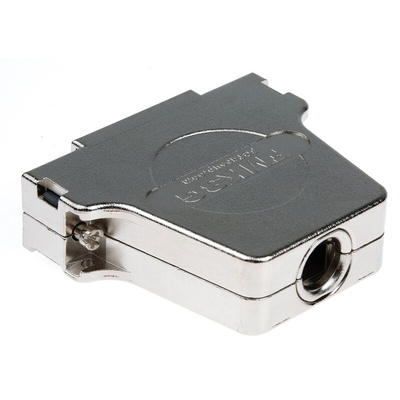

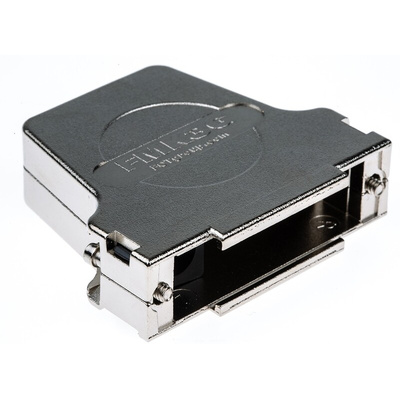

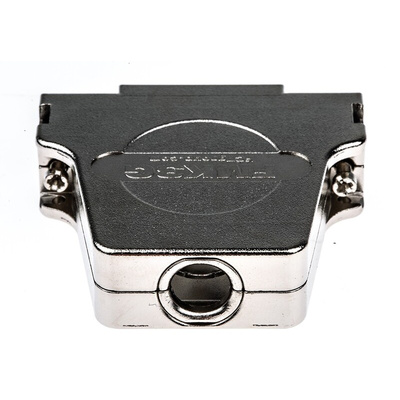

FMK3G / 1727040100, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 25 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

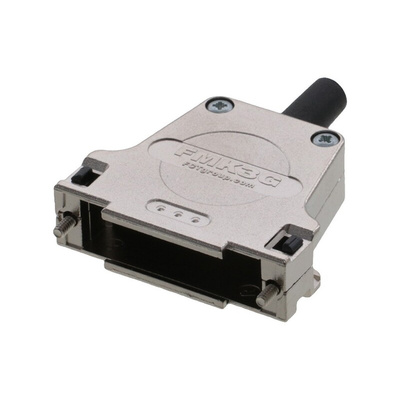

FCT from Molex D-Sub Backshell With Strain Relief, 25 Way - FMK Series - FMK3G / 1727040100

This FCT from Molex D-sub backshell secures and protects your electrical connections. Install it to stabilise your connectors for uninterrupted signal transmissions and the effective performance of your applications. The die-cast zinc housing provides efficient shielding from electromagnetic and radio frequency interference to safeguard internal components. A large inner chamber easily houses D-sub connectors with special contacts. As locking screws keep the receptacle securely in place, your connection won't fail when you transport equipment or use it in environments subject to jolts and vibrations.

• Strain relief on the cable outlet helps to maintain electrical and mechanical integrity for optimal performance
• Catch-spring system and pre-mounted locking screws for quick and simple installations
• Internal nickel plating ensures efficient conductivity for effective signal transfers

Applications

• Gaming consoles
• Media and entertainment centres
• Broadcasting applications
• Audio and recording installations

Can I use this D-sub backshell with applications that generate a lot of heat?

Yes, this backshell tolerates temperatures between -35°C and 100°C, so it's safe to use with high-heat applications. It's a robust and durable product specifically designed for use in electronic operations.
