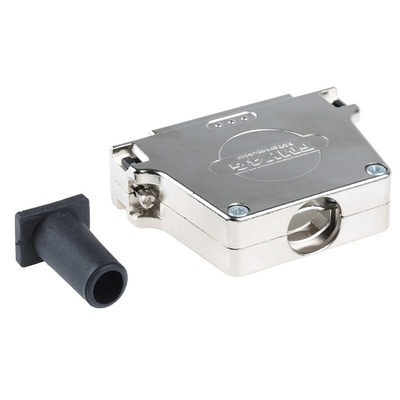

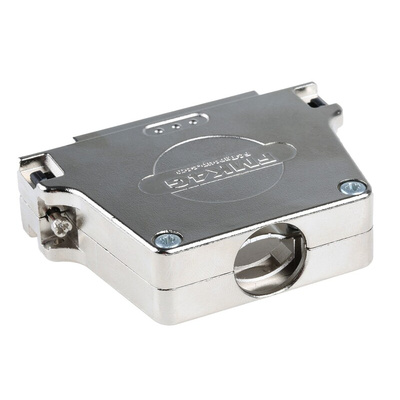

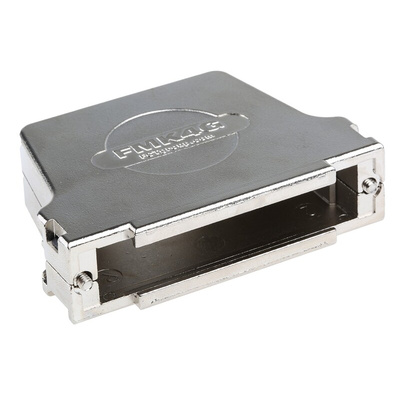

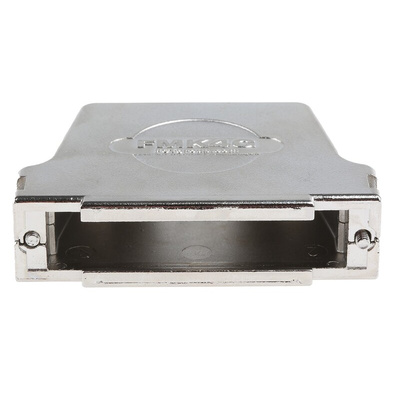

FMK4G-K201 / 1731110065, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 37 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell, 37 Contacts, Die-Cast Zinc Housing - FMK Series - FMK4G-K201 / 1731110065

Protect your D-sub connectors from impact and electromagnetic interference with this robust FCT from Molex backshell. Its durable die-cast zinc body covers your adapter and safeguards it from corrosion, so you can safely use it in demanding industrial environments. The backshell has a cable clamp that holds wires securely in place and features strain relief to protect the cable against twisting or light impacts in the workplace.

• Low weight of 97.3g for easy handling
• Accommodates cable diameters from 12 to 15mm for versatility
• Locking screws ensure the fit is secure

Applications

• Telecommunications industry
• Automation and robotics

What temperatures can this backshell tolerate?

This backshell has an operating temperature range of -35°C to +100°C, so it's suited to tough industrial conditions.

Is this connector suitable for installation outdoors?

This connector isn't suitable for installation outdoors, unless it's in a weatherproof cabinet, as it isn't waterproof or dustproof.
