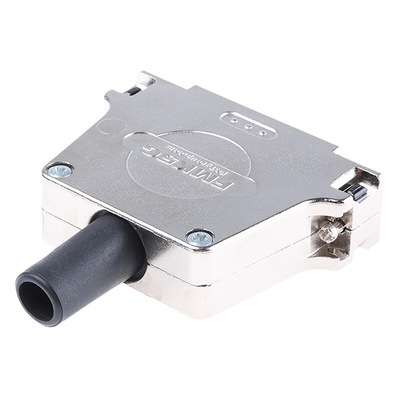

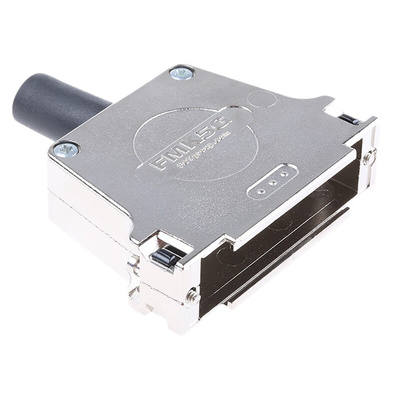

FMK5G-K201 / 1731110059, FCT from Molex FMK Series Die Cast Zinc D Sub Backshell, 50 Way, Strain Relief

FMK Series Metal Hoods, Straight and Angled 45°

These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet

Note

Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot

Warning

Stock no. 291-6288 is supplied without anti-kink feature

Approvals

UL E168813

FCT from Molex D-Sub Backshell Hood, D Shell Size, 50 Contacts - FMK Series - FMK5G-K201 / 1731110059

Use this D-sub backshell unit by FCT from Molex to give strain relief to your contact's connections. It's capable of up to 50 contact connections, so it minimises stress on many wires, reducing damage and potential downtime. The straight body orientation allows for easy integration, while the catch spring system and pre-mounted locking screws make installation straightforward. The D-sub design fits with industry-wide specifications, making this a highly compatible choice.

• Combines with locking hook or knurled thumb screws for further security
• Accepts modification via slide locks for enhanced versatility
• Durable die-cast zinc housing for a long service life

Applications

• Electrical engineering
• Automotive industry

How does a D-sub backshell hood work?

A backshell hood minimises cable-tension and takes the strain out of wired connections thanks to its large, angled cable outlet.

FMK_FMKG

Datasheet

D Sub Connector Back Shell Datasheet

Datasheet - FMK5G-K201 / 1731110059
